CAMSO

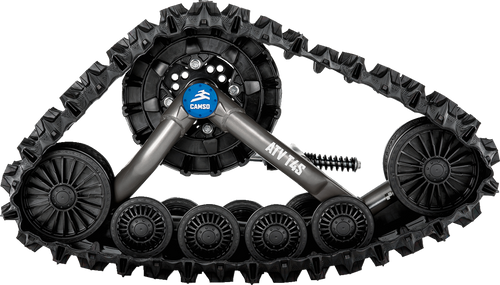

Camso Atv T4S Track System - '07-'12 Can-Am Outlander Max 500 6622-02-0526

MSRP : $5,540.99
$4,818.25
(You save $722.74 )
In Stock
(0) Write a Review
SKU:
4510-0453
Condition:
New
Shipping:
FREE SHIPPING
Adding to cart… The item has been added
SpecificationValue
FeaturesFor Rigid Axle Suspension
Front Track Width11.5"
Lug Height1.25"
Rear Height23.2"
Front Height23.8"
ModelATV T4S
Rear Track Width12.5"
Ground Clearance+3"
Product NameTrack System
Rear Track Length98.5"
Front Track Length93.4"
Tooth Count15-18
Ground Surface1,3 m² (2000 in²)
Riding StyleATV
UnitsEach


  • Increased steering stability and better impact absorption with two spring rates, soft for steering and stiff for impacts
  • Front and rear factory preset spring and rubber cuts adjustment time by 50%
  • Massive rear tracks provide the best flotation in deep and drifted snow
  • Best weight distribution; footprint pressure reduced by up to 75%
  • Efficiency of internal drive maximizes power delivery
  • Optimum power steering efficiency and longevity
  • Robust brackets and mounting kits
  • Gearing matched to engine power
  • Bearing Housing
  • Outer seals and stainless steel sleeves
  • Improved bearing durability
  • Greater reliability
  • Solid Steel Frame
  • Open lightweight design
  • Solid steel frames for riding comfort
  • Improved durability and performance
  • Easily sheds snow, mud & debris
  • Flex Track Design
  • Flextrack technology features flexible sides and a slight curve toward the inside, they provide a more comfortable ride than traditional flat tracks and reduced splatter from mud or snow
  • Stable, more precise steering for pleasant long-distance riding and long work hours
  • Tandem Stabilizer
  • Superior shock absorption and reduced vibration for more comfort and less fatigue
  • Bolt-on tandem mid-roller wheel
  • Idler and Mid-Roller Wheels
  • Sealed wheel and bearing with elastomeric outer band
  • Provides a longer life in rough conditions
  • 100% ice-free
  • Cap
  • Fitted wheel cap with bladder effect
  • Eliminates water absorption due to temperature variations
  • Not recommended for use over 25 mph.
  • Minor modification and light interference are possible on any model.

FITMENTS

YearMakeModel
2011-2012Can-AmOutlander Max 500 EFI XT
2007-2010Can-AmOutlander Max 500 HO EFI
2007-2010Can-AmOutlander Max 500 HO EFI XT
2011-2012Can-AmOutlander Max 500 EFI
Supplier:
Parts Unlimited
MAP:
Yes
