| Specification | Value |
|---|---|
| Front Height | 23.8" |
| Front Track Width | 11.5" |
| Ground Surface | 1,3 m² (2000 in²) |
| Riding Style | ATV |
| Features | For A-Arm Independent Suspension |
| Lug Height | 1.25" |
| Model | ATV T4S |
| Rear Track Width | 12.5" |
| Tooth Count | 15-18 |
| Units | Each |
| Front Track Length | 93.4" |
| Ground Clearance | +3" |

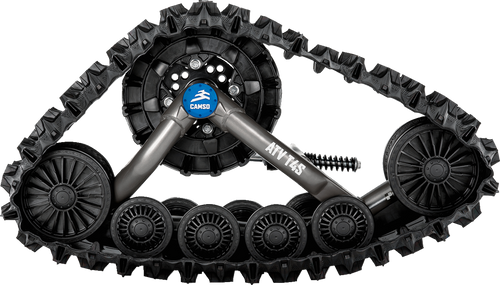

| Product Name | Track System |
| Rear Height | 23.2" |
| Rear Track Length | 98.5" |
- Increased steering stability and better impact absorption with two spring rates, soft for steering and stiff for impacts
- Front and rear factory preset spring and rubber cuts adjustment time by 50%
- Massive rear tracks provide the best flotation in deep and drifted snow
- Best weight distribution; footprint pressure reduced by up to 75%
- Efficiency of internal drive maximizes power delivery
- Optimum power steering efficiency and longevity
- Robust brackets and mounting kits
- Gearing matched to engine power
- Bearing Housing
- Outer seals and stainless steel sleeves
- Improved bearing durability
- Greater reliability
- Solid Steel Frame
- Open lightweight design
- Solid steel frames for riding comfort
- Improved durability and performance
- Easily sheds snow, mud & debris
- Flex Track Design
- Flextrack technology features flexible sides and a slight curve toward the inside, they provide a more comfortable ride than traditional flat tracks and reduced splatter from mud or snow
- Stable, more precise steering for pleasant long-distance riding and long work hours
- Tandem Stabilizer
- Superior shock absorption and reduced vibration for more comfort and less fatigue
- Bolt-on tandem mid-roller wheel
- Idler and Mid-Roller Wheels
- Sealed wheel and bearing with elastomeric outer band
- Provides a longer life in rough conditions
- 100% ice-free
- Cap
- Fitted wheel cap with bladder effect
- Eliminates water absorption due to temperature variations
- Not recommended for use over 25 mph.
- Minor modification and light interference are possible on any model.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2022-2023 | Argo | Xplorer XR 700 EPS |
| 2022-2023 | Argo | Xplorer XR 700 LE |
- MAP:
- Yes
