CAMSO

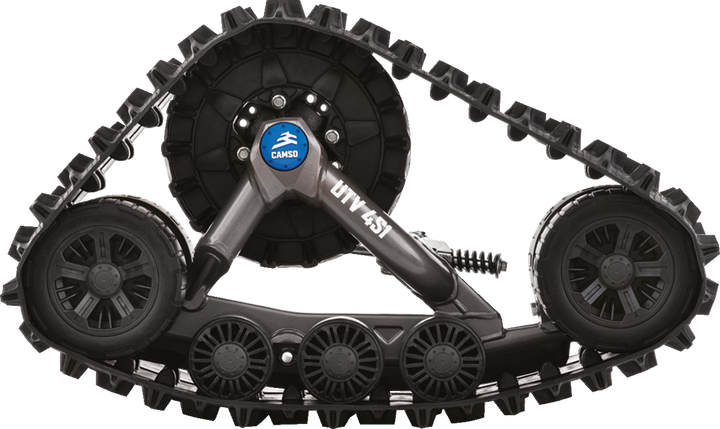

Camso Utv 4S1 Track System - Rzr 6522-05-1114

MSRP : $7,572.27
$6,584.58
(You save $987.69 )
In Stock
(0) Write a Review
SKU:
4510-0908
Condition:
New
Shipping:
FREE SHIPPING
Adding to cart… The item has been added
SpecificationValue
Rear Height24.7"
FeaturesFor A-Arm Independent Suspension
Front Track Length98.5"
ModelUTV 4S1
Riding StyleUTV
Tooth Count15-18
Front Track Width12.5"
Ground Surface1,62 m² (2520 in²)
Lug Height1.125"
Product NameTrack System
Front Height25"
Rear Track Width14"
Rear Track Length116.7"
UnitsEach
Ground Clearance+5"


  • Anti-rotation bracket bolted onto the frame with factory pre-loaded spring and dual rubber damper (rear only) makes adjusting the rod and track to the required angle easier
  • Easier switch between tracks and tires allows side-by-side enthusiasts to go out and free themselves from the road as quickly as possible
  • Mid-roller suspension feature minimizes vibration and increases ride comfort
  • Sturdier and more adjustable tensioner prevents critical part misalignment
  • Hub and bearing features a bigger oil cap for easier maintenance
  • Easier installation and improved vehicle adaptability
  • Solid Steel Frame
  • Open lightweight steel frame design easily sheds snow, mud and debris and pivots in tandem at each end
  • Bearing Housing
  • Triple bearing design with oil bath lubrication improves durability and stainless sleeves for greater reliability
  • Stainless sleeves for greater reliability
  • Puncture-Proof Tires
  • High-density tire with adjusted shape reduces friction and wear, maximizes shock absorption to improve ride quality and delivers trouble-free performance
  • Tandem Stabilizer and Wheel Shaft
  • Tandem stabilizer features rubber-mounted shafts that eliminate the need for greasing and absorbs shocks for a smoother, more stable ride
  • Wheel and Seal
  • Enhanced wheel seal design improves sealing and guiding, reduces wear and eliminates water absorption due to temperature variations
  • Flex Track Design
  • Front-mounted tracks with flexible sides and slight curve toward the inside
  • Not recommended for use over 25 mph.
  • Minor modification and light interference are possible on any model.

FITMENTS

YearMakeModel
2022-2023PolarisRZR Turbo R 4 Ultimate
2014PolarisRZR XP 1000 EPS LE 4x4
2016-2019PolarisRZR XP 4 Turbo EPS
2018-2019PolarisRZR XP 4 Turbo EPS DYNAMIX Edition
2019PolarisRZR XP 4 Turbo EPS LE
2022-2023PolarisRZR Turbo R Sport
2015PolarisRZR XP 1000 EPS Fox Edition
2014-2019PolarisRZR XP 4 1000 EPS
2018-2019PolarisRZR XP Turbo EPS DYNAMIX Edition
2019PolarisRZR XP Turbo EPS LE
2018-2022PolarisRZR RS1
2022-2023PolarisRZR Turbo R Premium
2022-2023PolarisRZR Turbo R Ultimate
2020-2021PolarisRZR XP 1000
2014-2019PolarisRZR XP 1000 EPS
2022-2023PolarisRZR Turbo R 4 Sport
2016-2019PolarisRZR XP Turbo EPS
2022-2023PolarisRZR Turbo R 4 Premium
2018PolarisRZR XP 4 Turbo EPS Fox Edition
2017PolarisRZR XP 1000 EPS Velocity Blue LE
2019PolarisRZR XP 4 1000 EPS DYNAMIX Edition
2018PolarisRZR XP Turbo EPS Fox Edition
2019PolarisRZR XP 1000 4x4
2019PolarisRZR XP 1000 EPS DYNAMIX Edition
2017PolarisRZR XP 1000 EPS Gold Matte Metallic LE
2020PolarisRZR XP Turbo EPS 4x4
