CAMSO

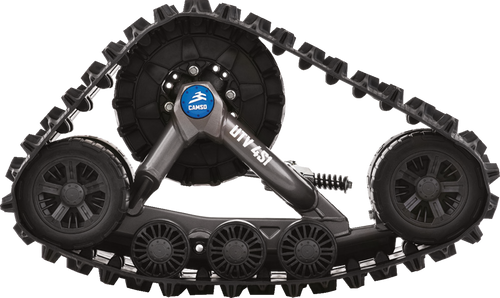

Camso Utv 4S1 Track System - Sportsman 800 6X6 6522-05-6006

MSRP : $7,572.27
$6,584.58
(You save $987.69 )
In Stock
(0) Write a Review
SKU:
4510-0912
Condition:
New
Shipping:
FREE SHIPPING
Adding to cart… The item has been added
SpecificationValue
Front Height25"
Front Track Width12.5"
Ground Surface1,62 m² (2520 in²)
Rear Track Width14"
Product NameTrack System
Rear Height24.7"
Rear Track Length116.7"
Front Track Length98.5"
ModelUTV 4S1
Tooth Count15-18
FeaturesFor A-Arm Independent Suspension
Ground Clearance+5"
Lug Height1.125"
Riding StyleATV
UnitsEach


  • Anti-rotation bracket bolted onto the frame with factory pre-loaded spring and dual rubber damper (rear only) makes adjusting the rod and track to the required angle easier
  • Easier switch between tracks and tires allows side-by-side enthusiasts to go out and free themselves from the road as quickly as possible
  • Mid-roller suspension feature minimizes vibration and increases ride comfort
  • Sturdier and more adjustable tensioner prevents critical part misalignment
  • Hub and bearing features a bigger oil cap for easier maintenance
  • Easier installation and improved vehicle adaptability
  • Solid Steel Frame
  • Open lightweight steel frame design easily sheds snow, mud and debris and pivots in tandem at each end
  • Bearing Housing
  • Triple bearing design with oil bath lubrication improves durability and stainless sleeves for greater reliability
  • Stainless sleeves for greater reliability
  • Puncture-Proof Tires
  • High-density tire with adjusted shape reduces friction and wear, maximizes shock absorption to improve ride quality and delivers trouble-free performance
  • Tandem Stabilizer and Wheel Shaft
  • Tandem stabilizer features rubber-mounted shafts that eliminate the need for greasing and absorbs shocks for a smoother, more stable ride
  • Wheel and Seal
  • Enhanced wheel seal design improves sealing and guiding, reduces wear and eliminates water absorption due to temperature variations
  • Flex Track Design
  • Front-mounted tracks with flexible sides and slight curve toward the inside
  • Not recommended for use over 25 mph.
  • Minor modification and light interference are possible on any model.

FITMENTS

YearMakeModel
2009-2011PolarisSportsman 800 EFI 6x6 Big Boss
2012-2014PolarisSportsman 800 6x6 Big Boss
MAP:
Yes
