| Specification | Value |
|---|---|
| Units | Each |

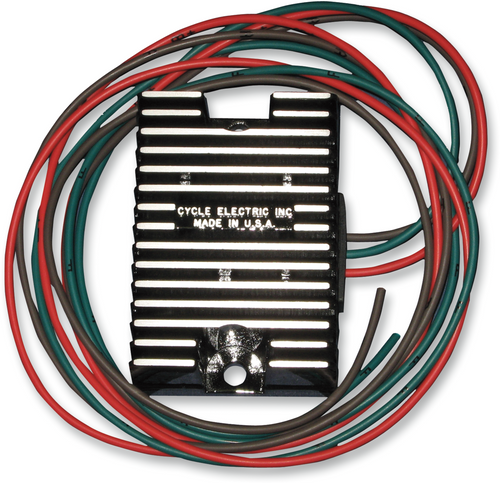

| Product Name | Rectifier and Regulator |
| Color/Finish | Black |
| Riding Style | Street |
| Battery Voltage | 12 V |
| Amps | 10 A |
- Control voltage on Harley-Davidson alternators, unlike other rectifiers or regulators that dump to ground and cause maximum stator current and higher temperatures
- Cycle Electric rectifying regulators block current to control voltage; this reduces stator current, resulting in low temperature and less drag on the motor, which means more efficient operation
- Low voltage style features reduced charging voltage to prevent overcharging the battery
- Made in the USA
FITMENTS
| Year | Make | Model |
|---|---|---|
| 1978 | Harley-Davidson | XLCR Cafe Racer |
| 1978 | Harley-Davidson | XLT |
| 1978-1981 | Harley-Davidson | XLH1000 |
| 1978-1979 | Harley-Davidson | XLCH |
| 1979-1981 | Harley-Davidson | XLS Roadster |
- Color:
- Black
