| Specification | Value |
|---|---|
| Units | Kit |
| Type | Rubber Mount |
| Product Name | Fuel Tank |
| Material | Steel |
| Model | QuickBob |
| Color/Finish | Raw |
| Riding Style | Street |
| Style | Dash / Extended 2" |
| Tank Capacity | 14.8 liter / 3.9 US gal. |
| Base Color | Silver |
- Fully functional extended design, 2" longer than a standard Quickbob tank
- Allows the lines of the tank to flow into the lines of the seat for a great custom look

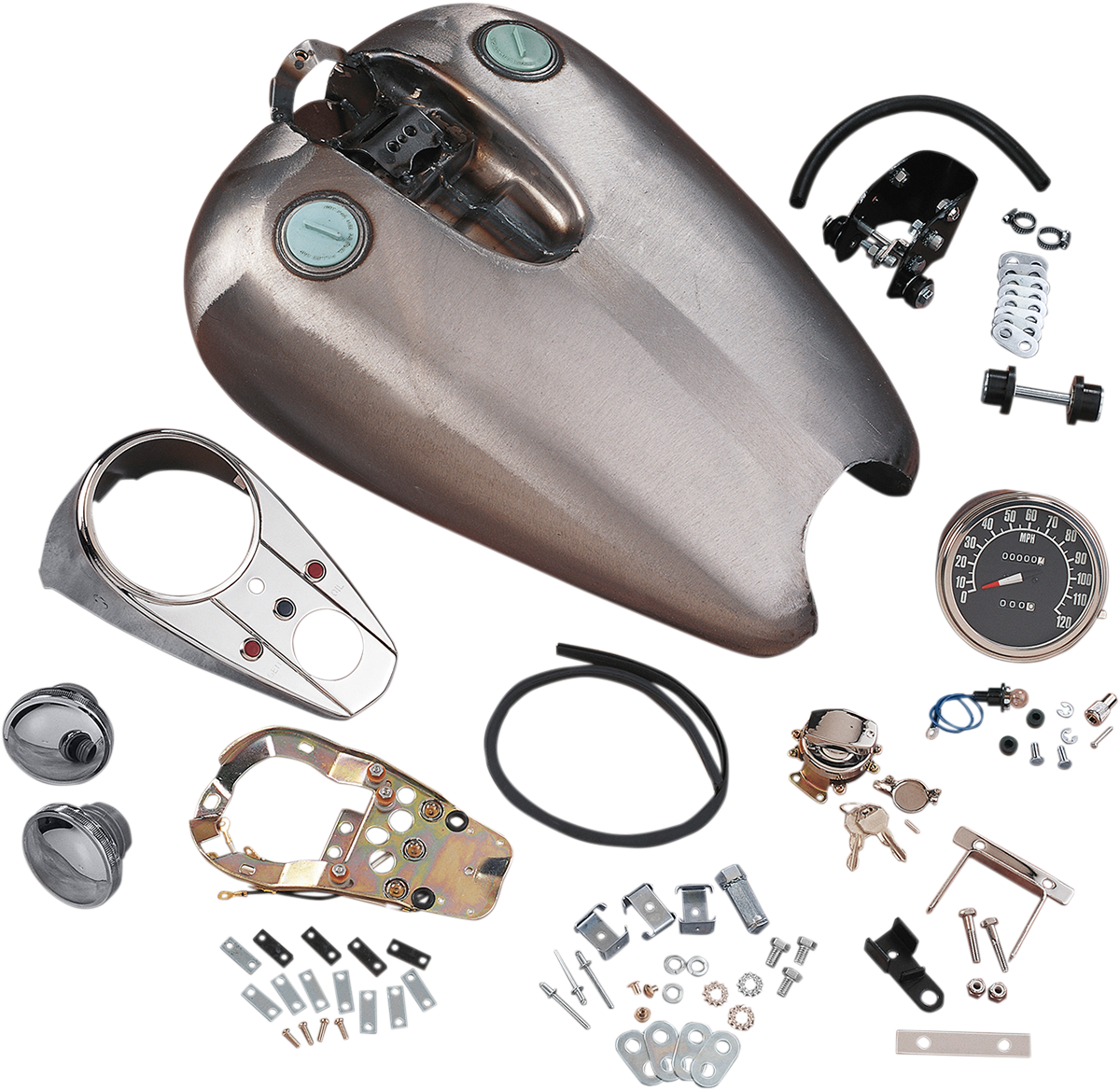

- Comes with necessary mounting brackets
- 3.9-gallon fuel capacity
- Utilizes a 22 mm petcock
- Has a cutout in rear for seat nose (some seats may need to be modified).
- Caps are not included unless noted.
- All tanks are shipped unpainted.
- All gas tanks should be fitted, pressure tested and sealed before being painted to eliminate potential problems.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 1988-1994 | Harley-Davidson | XLH1200 |
| 1987-1994 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 1983-1985 | Harley-Davidson | XLX 1000 |
| 1983-1984 | Harley-Davidson | XR1000 |
| 1987, 1989, 1990, 1991, 1992, 1993, 1994 | Harley-Davidson | Sportster 883 XLH |
| 1986-1994 | Harley-Davidson | XLH883DLX Sportster 883 Deluxe |
| 1982-1985 | Harley-Davidson | XLS Roadster |
| 1982-1985 | Harley-Davidson | XLH1000 |
| 1986-1987 | Harley-Davidson | XLH1100 |
| 1986, 1988 | Harley-Davidson | XLH883 |
