| Specification | Value |
|---|---|
| Rope Diameter | 5/16" |
| Units | Each |
| Color/Finish | Anodized / Gray |
| Riding Style | ATV / UTV |
| Load Capacity | 6000 lb |
| Material | Aluminum / Titanium |
| Type | Winch |
| Product Name | Shackle |

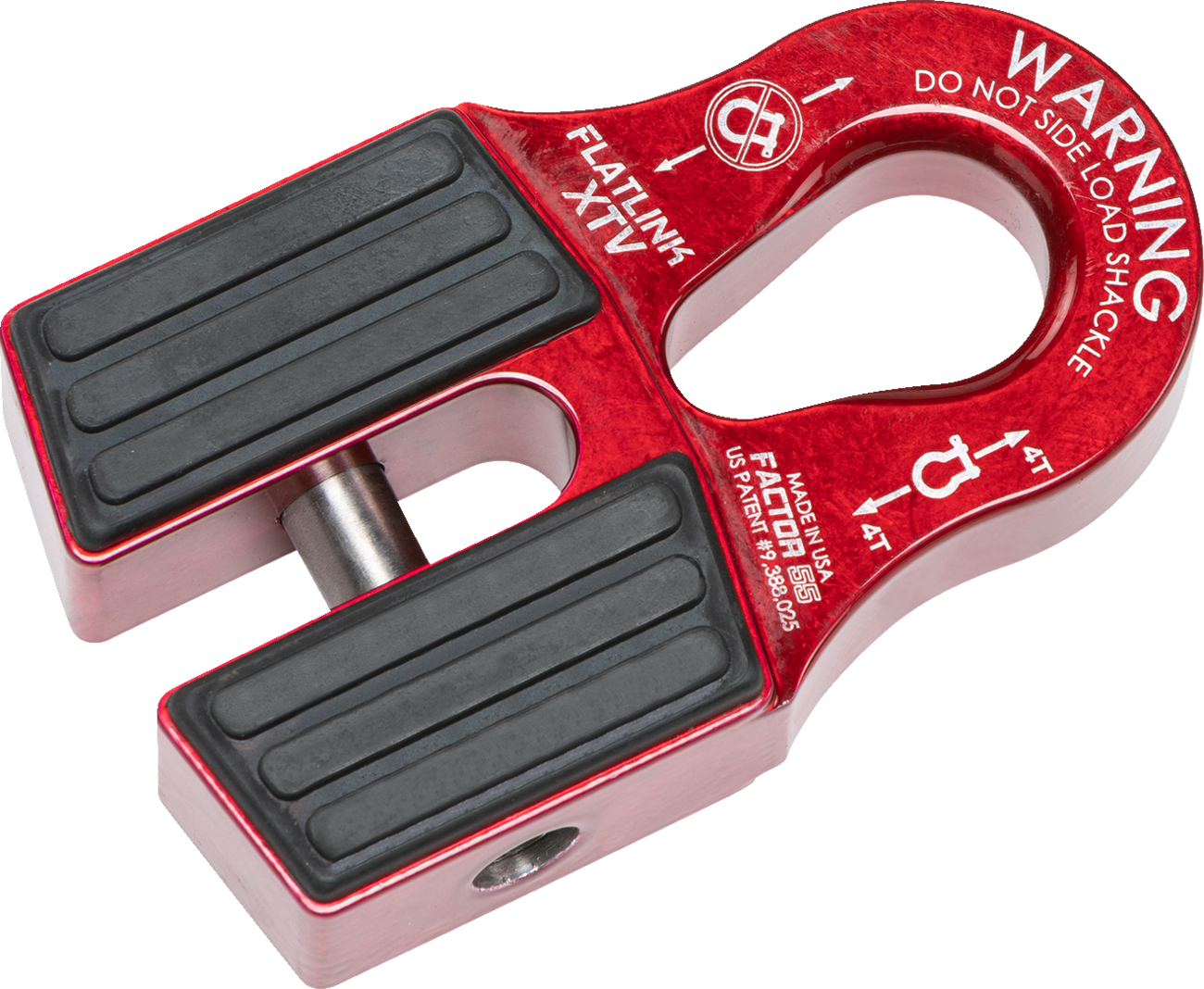

- The FlatLink XTV allows UTV and ATV winch owners to replace the conventional winch hook with a safer and stronger shackle and D-Ring
- Closed system winching with a folding, low-profile design for better approach angles
- Easy to install - simple snap ring removal for shear pin
- Does not require splicing and is compatible with steel cables or synthetic ropes up to 5/16 inches
- The rope eye is retained in the FlatLink XTV with a 7/16 diameter 6AI-4V grade V titanium double-shear pin and internal snap ring for an ultra-secure connection
- EPDM rubber guards are attached with four barbed tips and protects fairleads and prevents rattling
- Works with common 1/2 and 5/8 shackles (pin and bow end), soft shackles up to 7/16, and the pin-end of 3/4 shackles
- Weight: 12.7 oz
- Intended for use with winches 6,000 lbs. in capacity or less
- Precision machined from 6000 series Aaluminum Aand 6Al-4V titanium
