| Specification | Value |
|---|---|
| Base Color | Black |
| End Rise | 16" |
| Type/Bend | Ape Hanger |
| Features | Accepts Heated Grips / Notched for Throttle-By-Wire / Pre-Wired / Internal Wiring / Knurled Center |
| Product Name | Handlebar |
| Pullback/Sweep | 8" |
| Finish | Gloss |
| Units | Kit |
| Rise | 16" |
| Color/Finish | Black / Gloss |
| Controls Diameter | 1" |
| Handlebar Diameter | 1-1/4" |
| Width | 35" |
| Height | 16" |
| Material | Steel |
| Center Width | 10-1/4" |
| Clamping Diameter | 1-1/4" |
| Riding Style | Street |

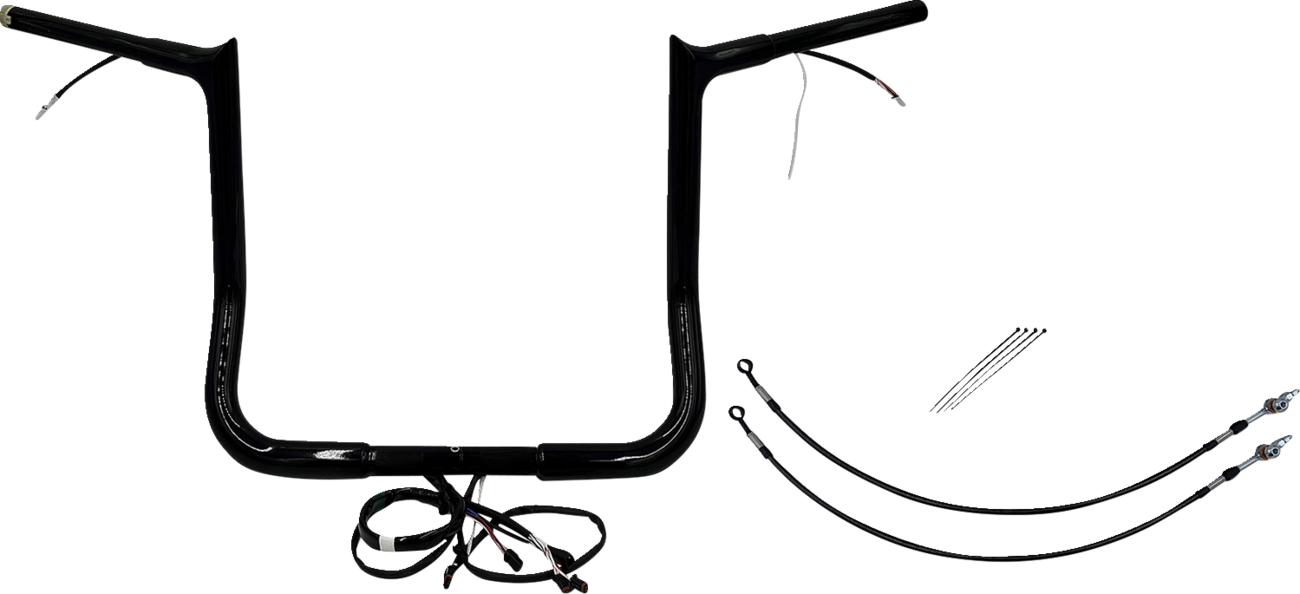

- Wired for your handlebar controls, including a throttle-by-wire sensor installed
- Remove the bars from the box and plug them into your motorcycle
- No more need to fight internal wiring with our handlebars: you can install wiring in minutes
- Non welded top corner is machined from billet steel with a smooth internal wire cavity that won't damage the internal wiring
- CNC mandrel bent from 1-1/4" Dia. x .120" wall heavy tube
- Bolt-together, 2-piece handlebar takes up half the shelf space
- Made in the U.S.A.
- Does not replace existing lines and cables, but extends them.
- Accepts OEM heated grips.
- Heated Grip Extension sold separately.
- All '21-'23 kits will include black brake lines and black clutch extensions.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2015 | Harley-Davidson | FLTRX Road Glide |
| 2015 | Harley-Davidson | FLTRXS Road Glide Special |
