| Specification | Value |
|---|---|
| Bore Oversize | Standard |
| Product Name | Piston Ring Set |
| Riding Style | Street |
| Style | Replacement |
| Bore - Oversize | Standard |
| Bore Size | 3.000" |
| Ring Material | Moly Coated |
| Units | Set |

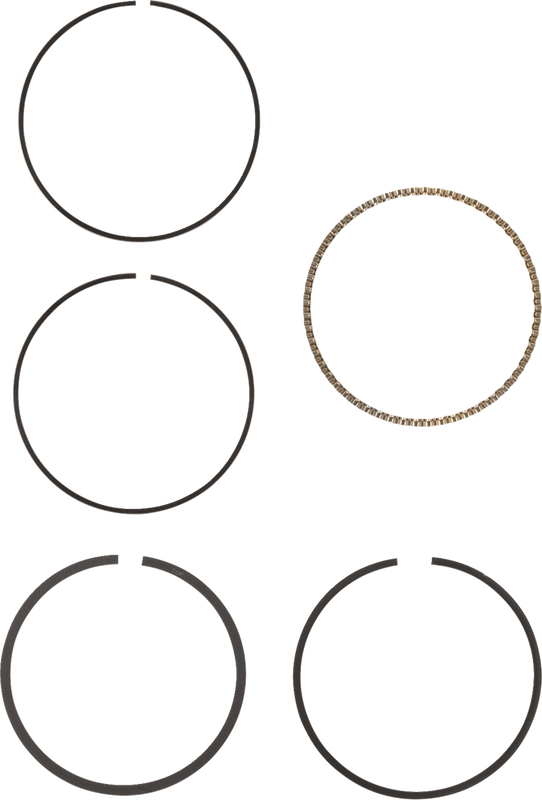

- Includes top compression rings, second compression rings, and oil control rings
- Top Compression Rings are Barrel Face
- Helps in the the heat transfer process between the piston and cylinder wall
- Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
- Second Compression Ring are Napier
- Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
- Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
- Oil Control Rings are Three Piece Flex Vent
- Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
- Provides uniform pressure through four steel rails and two expanders assuring positive oil control
- Made in the USA
- Includes enough rings for two pistons (unless noted).
- Two rings per groove, except for the rails that will be two rail rings per one expander ring.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2002-2003 | Harley-Davidson | XL883R Sportster 883 Roadster |
| 1987, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 | Harley-Davidson | Sportster 883 XLH |
| 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 2002, 2003 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 1986, 1988, 1999, 2000, 2001 | Harley-Davidson | XLH883 |
| 1986-1995 | Harley-Davidson | XLH883DLX Sportster 883 Deluxe |
| 1999-2003 | Harley-Davidson | XL883C Sportster 883 Custom |
