| Specification | Value |
|---|---|
| Exhaust Duration | 251° |
| Exhaust Lobe Centerline | 105° |
| Intake Duration | 254° |
| Application | Intake / Exhaust |
| Exhaust Lift | 9.210 mm |
| Intake Lift | 9.260 mm |
| Intake Lobe Centerline | 109° |
| Riding Style | Off-Road |
| Units | Each |
| Type | Stage 1 |

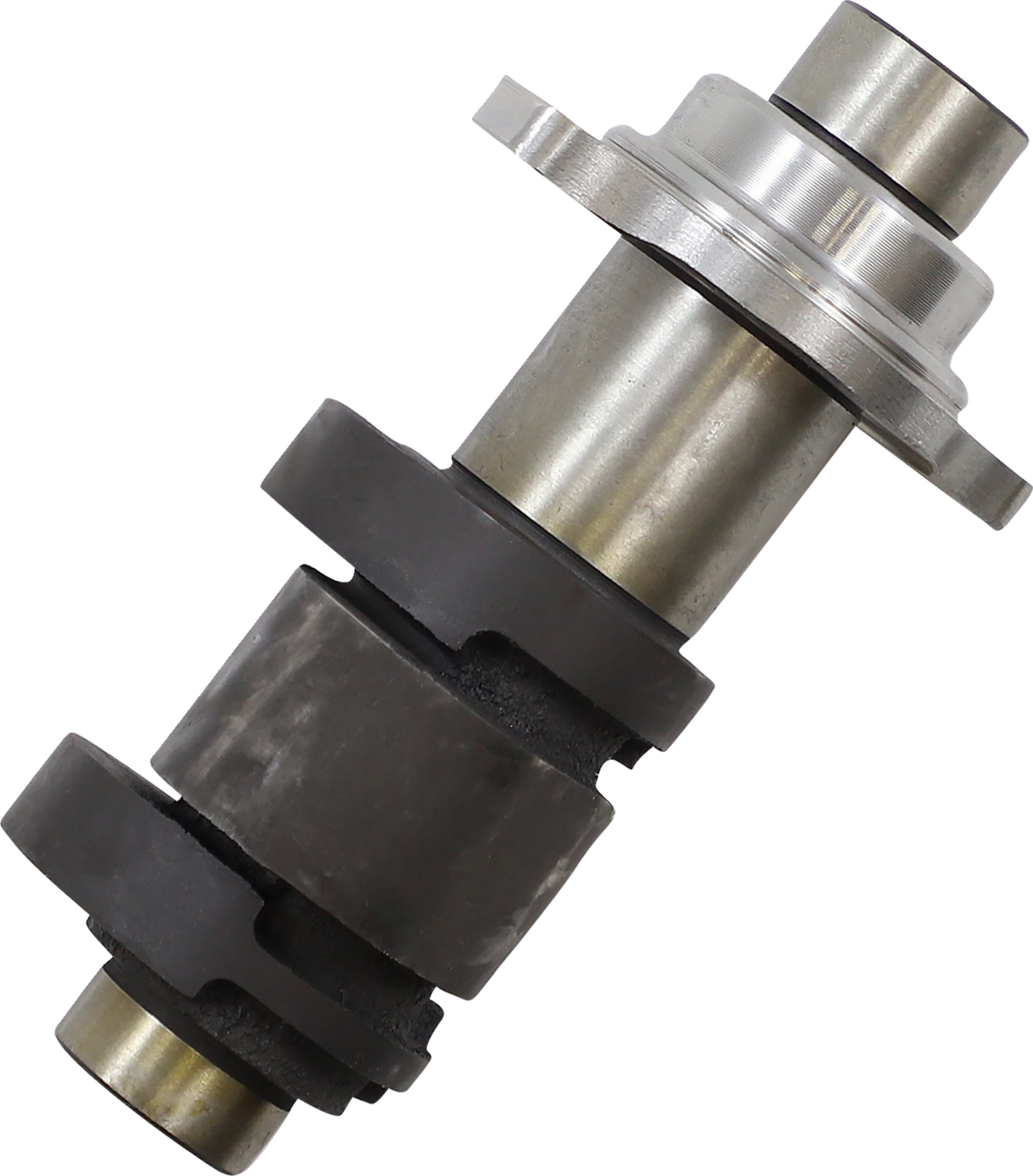

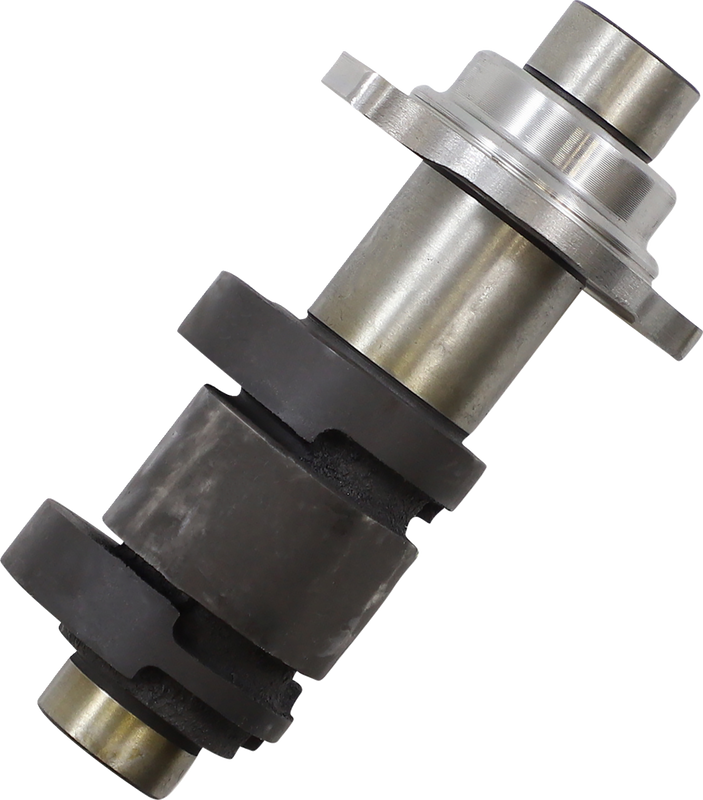

| Product Name | Camshaft |
- Designed and dyno proven in the USA
- Engineered by using valvetrain software
- Adds a 5%-10% power gain
- CNC machined from 8620 billet, case hardened steel for an exact fit and lobe profile
- Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end
- Designed for low end torque.
- Engineered to be drop in cams that use stock valve springs (unless otherwise noted).
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2000-2007 | Honda | XR650R |
- MAP:
- Yes
