| Specification | Value |
|---|---|
| Exhaust Lift | 8.80 mm |
| Riding Style | ATV / Off-Road |
| Intake Duration | 238° |
| Type | Stage 1 |
| Application | Exhaust / Intake |
| Units | Each |
| Exhaust Duration | 270° |
| Exhaust Lobe Centerline | 103.250° |
| Intake Lift | 9.60 mm |
| Intake Lobe Centerline | 109° |

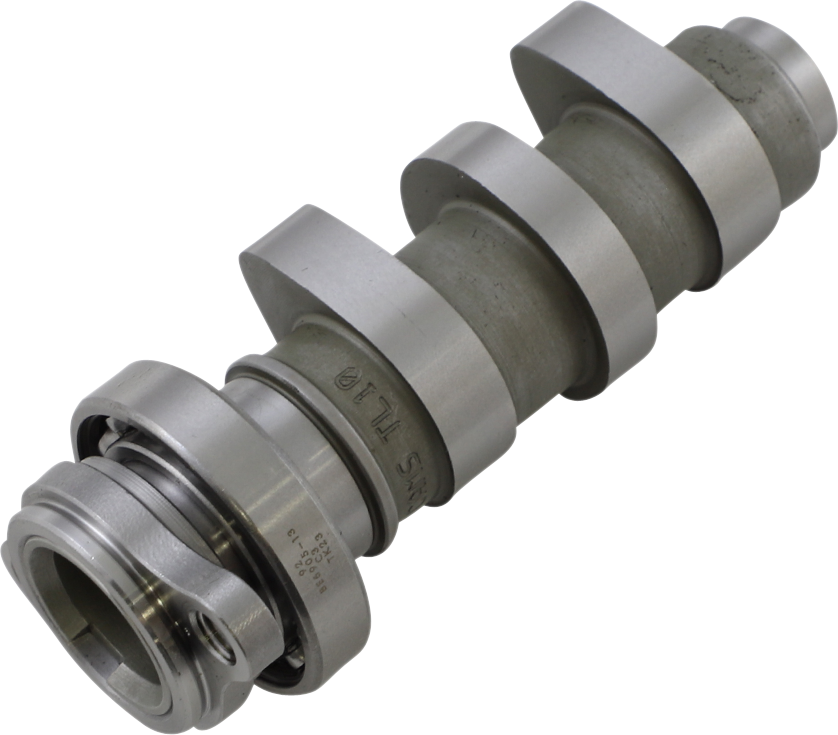

| Product Name | Camshaft |
- Designed and dyno proven in the USA
- Engineered by using valvetrain software
- Adds a 5%-10% power gain
- CNC machined from 8620 billet, case hardened steel for an exact fit and lobe profile
- Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end
- Designed for low end torque.
- Engineered to be drop in cams that use stock valve springs (unless otherwise noted).
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2006-2007 | Honda | TRX450ER Electric Start |
| 2002-2006 | Honda | CRF450R |
| 2005-2007 | Honda | CRF450X |
| 2004-2009 | Honda | TRX450R |
- MAP:
- Yes
