| Specification | Value |
|---|---|
| Exhaust Duration | 250° |
| Riding Style | ATV |
| Application | Intake / Exhaust |
| Units | Each |
| Intake Lift | 10.00 mm |
| Intake Lobe Centerline | 107.500° |

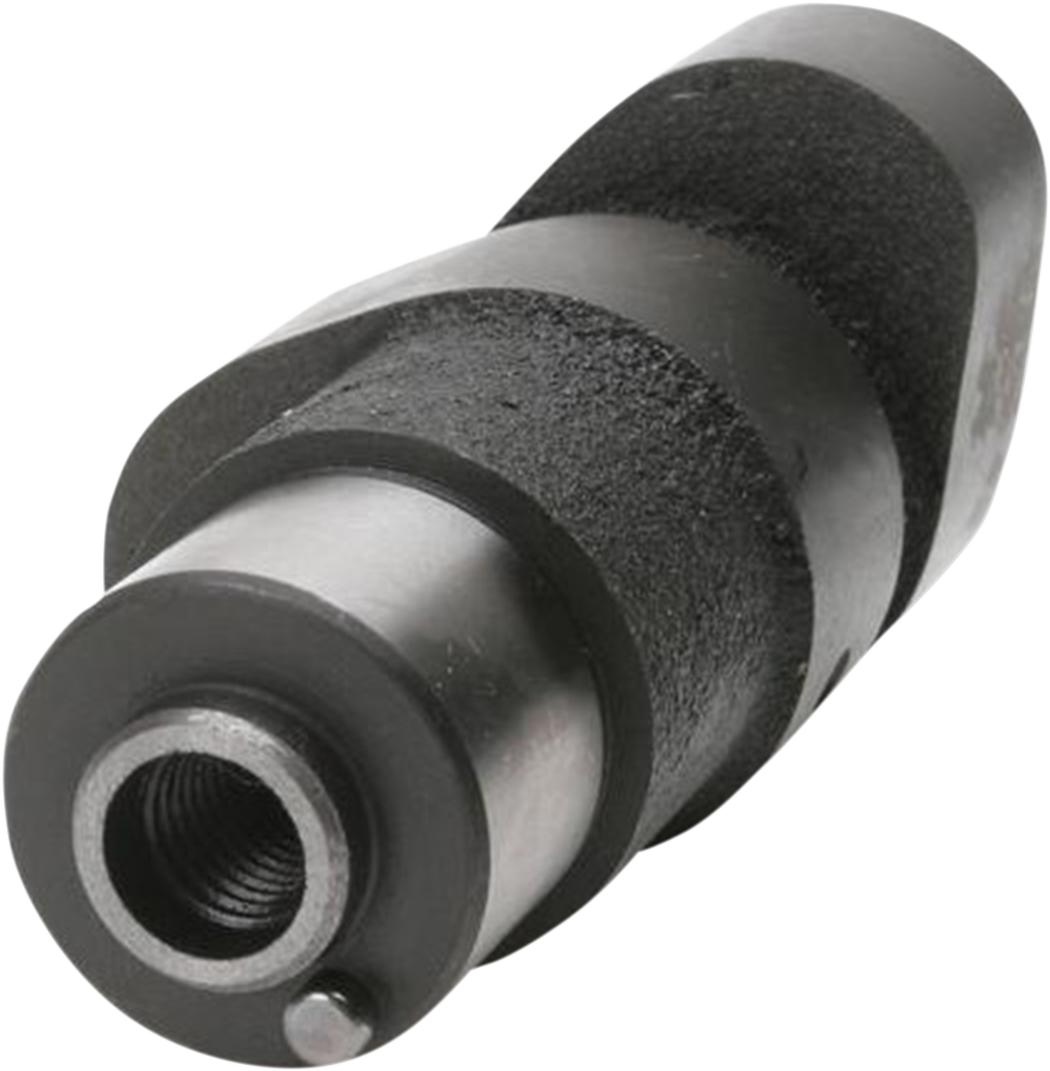

| Product Name | Camshaft |
| Type | Stage 1 |
| Exhaust Lobe Centerline | 107.500° |
| Intake Duration | 250° |
| Exhaust Lift | 10.00 mm |
- Designed and dyno proven in the USA
- Engineered by using valvetrain software
- Adds a 5%-10% power gain
- CNC machined from 8620 billet, case hardened steel for an exact fit and lobe profile
- Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end
- Designed for low end torque.
- Engineered to be drop in cams that use stock valve springs (unless otherwise noted).
FITMENTS
| Year | Make | Model |
|---|---|---|
| 1996, 1998, 1999, 2000, 2001, 2002, 2003 | Yamaha | YFM 350 FX Wolverine 4x4 |
| 1987-2004 | Yamaha | YFM350X Warrior |
| 1987-1999 | Yamaha | YFM350FW Big Bear 4x4 |
| 2004-2006 | Yamaha | YFM350 Raptor |
| 2004-2006 | Yamaha | YFM 350 Bruin 4x4 |
| 2000-2006 | Yamaha | YFM400 Big Bear 4x4 |
| 2004-2006 | Yamaha | YFM350FA Bruin Auto 4x4 |
| 1995, 1997, 2004, 2005 | Yamaha | YFM350F Wolverine 4x4 |
| 2005-2006 | Yamaha | Raptor 350 SE 4x2 |
| 2000-2002 | Yamaha | Big Bear 400 Hunter Edition 4x4 |
| 2000-2004 | Yamaha | YFM400 Big Bear 2x4 |
| 1996-1999 | Yamaha | YFM350U Big Bear 2x4 |
| 1993-1999 | Yamaha | YFM 400 FW Kodiak 4x4 |
- MAP:
- Yes
