| Specification | Value |
|---|---|
| Units | Kit |
| Riding Style | UTV / ATV |
| Product Name | Connecting Rod Kit |
| Displacement | 700 cc / 750 cc / 800 cc |
| Engine Type | 4-Cycle |
| Material | 8620 Steel |

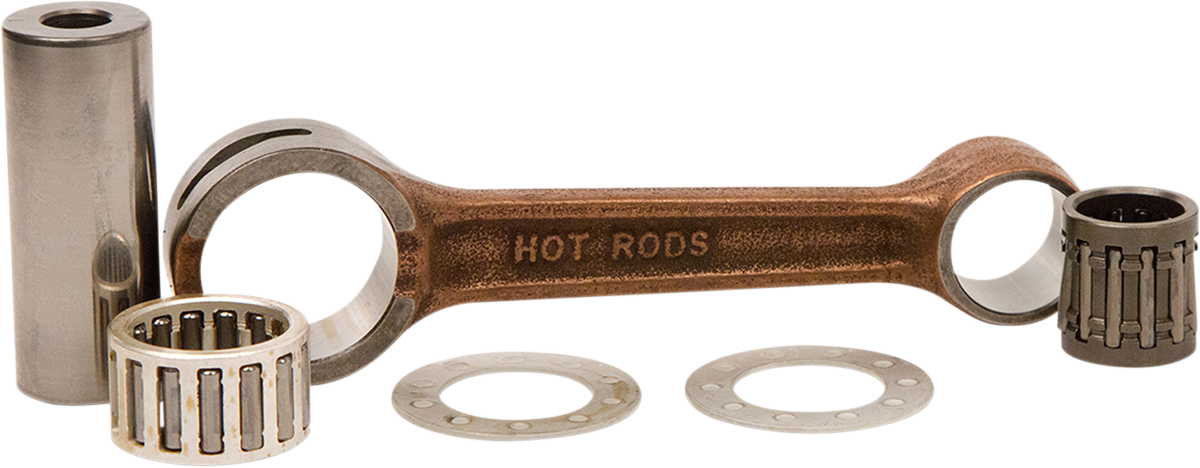

- Heavy-duty OE replacement connecting rods
- Certified 8620 AISI steel provides superior strength
- Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
- Features the latest in caged needle roller bearing designs for high rpm longevity
- Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
- Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
- Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
- Double honing produces an ultra-round bearing surface for reliability at high rpm
- Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
- Made in the USA
- Compatible with Hot Rods and OE crankshafts.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2004-2009 | Kawasaki | KSV 700 KFX V-Force |
| 2009-2013 | Kawasaki | KRF750 Teryx FI 4x4 |
| 2008-2013 | Kawasaki | KRF750 Teryx FI 4x4 LE |
| 2014-2024 | Kawasaki | KRT800 Teryx4 |
| 2005-2021 | Kawasaki | KVF750 Brute Force 4x4i |
| 2012-2023 | Kawasaki | KVF750 Brute Force 4x4i EPS |
| 2022-2023 | Kawasaki | KVF750 Brute Force 4x4i EPS Camo |
| 2008-2009 | Kawasaki | KRF750 Teryx 4x4 |
| 2015-2023 | Kawasaki | KRF800 Teryx |
| 2025 | Kawasaki | KVF 750 Brute Force EPS 4x4i |
| 2013 | Kawasaki | KRT 750 Teryx4 4x4 |
| 2025 | Kawasaki | KVF 750 Brute Force 4x4i |
| 2014 | Kawasaki | KRF 800 Teryx |
| 2004-2006 | Kawasaki | KVF700 Prairie 4x4 |
| 2012-2013 | Kawasaki | KRT750 Teryx4 4x4 EPS |
| 2012 | Kawasaki | KRT750 Teryx4 4x4 |
| 2024 | Kawasaki | KVF750 Brute Force 750 EPS |
| 2021 | Kawasaki | KRF800 Teryx LE |
| 2024 | Kawasaki | KVF 750 Brute Force EPS Camo 4x4i |
| 2024 | Kawasaki | KVF750 Brute Force 750 EPS LE |
| 2021 | Kawasaki | KRT800 Teryx4 LE |
| 2004-2005 | Suzuki | LT-V700F Twin Peaks 700 4x4 |
- MAP:
- Yes
