| Specification | Value |
|---|---|
| Color/Finish | Steel |
| Displacement | 424 cc |
| Stroke Length | 66.60 mm |
| Model | 4-Cycle |
| Material | 4140 Steel |

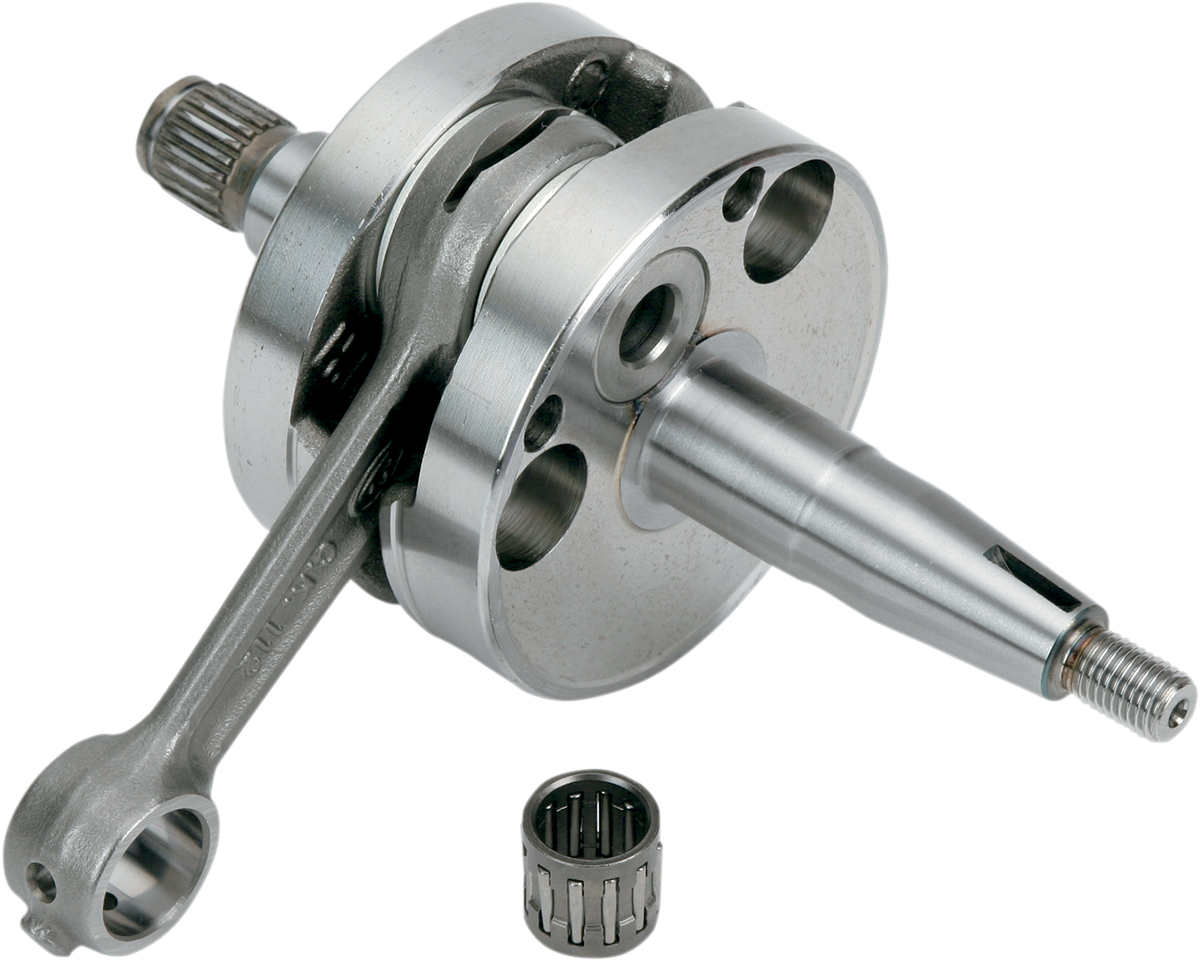

| Product Name | Crankshaft Assembly |
| Riding Style | Adventure Touring / Dual-Sport / ATV / Off-Road |
| Type | Stroker |
| Features | Heavy Duty Crankshaft |
| Units | Assembly |
- Factory assembled and trued to OEM specifications
- Drop in replacement crankshaft requires no modification unless noted
- CNC machined and dynamically balanced to suit the increased stroke
- Add +2.00 mm to +4.00 mm of stroke depending on application
- Uses stock piston unless noted
- Main bearings not included
- Can be matched with Cylinder Works Big Bore cylinders to get significant displacement and horsepower gains
- Not re-buildable as the rods are shorter than OEM.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2003-2006 | Kawasaki | KFX400 |
| 2003-2004 | Kawasaki | KLX400R |
| 2000-2007 | Suzuki | DR-Z400E |
| 2005, 2006, 2007, 2008, 2009, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020 | Suzuki | DR-Z400S |
| 2005, 2006, 2007, 2008, 2009, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020 | Suzuki | DR-Z400SM |
| 2003-2014 | Suzuki | LT-Z400 QuadSport Z |
| 2000-2004 | Suzuki | DR-Z400 |
| 2004-2008 | Arctic Cat | DVX 400 |
