| Specification | Value |
|---|---|

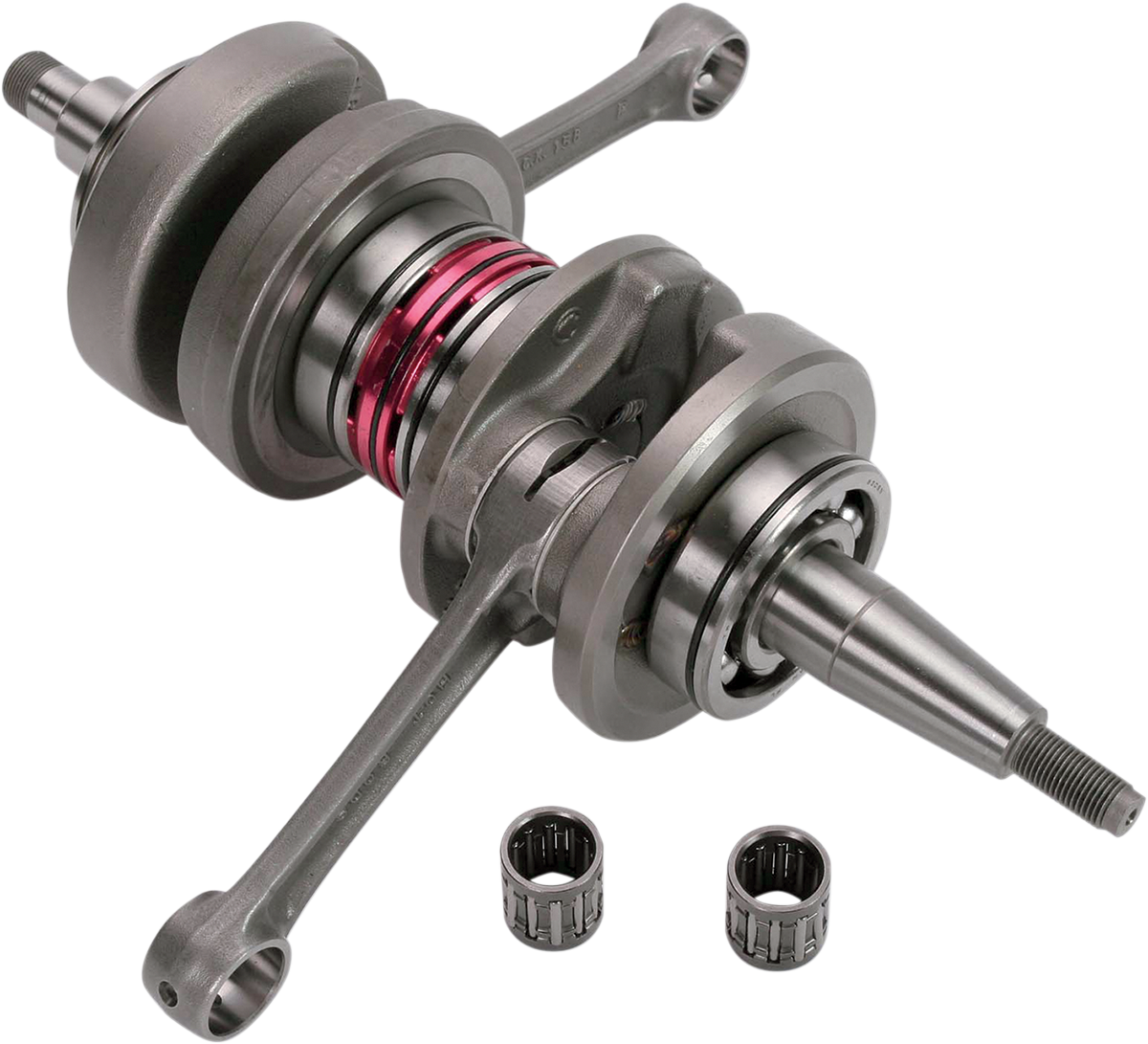

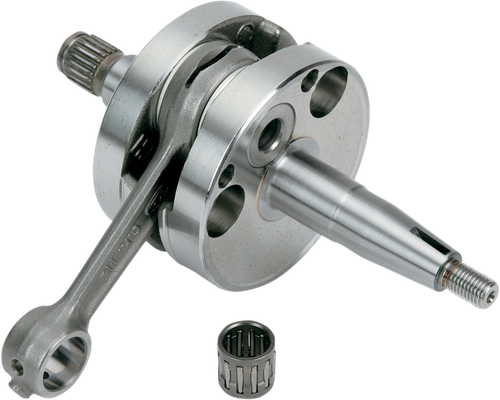

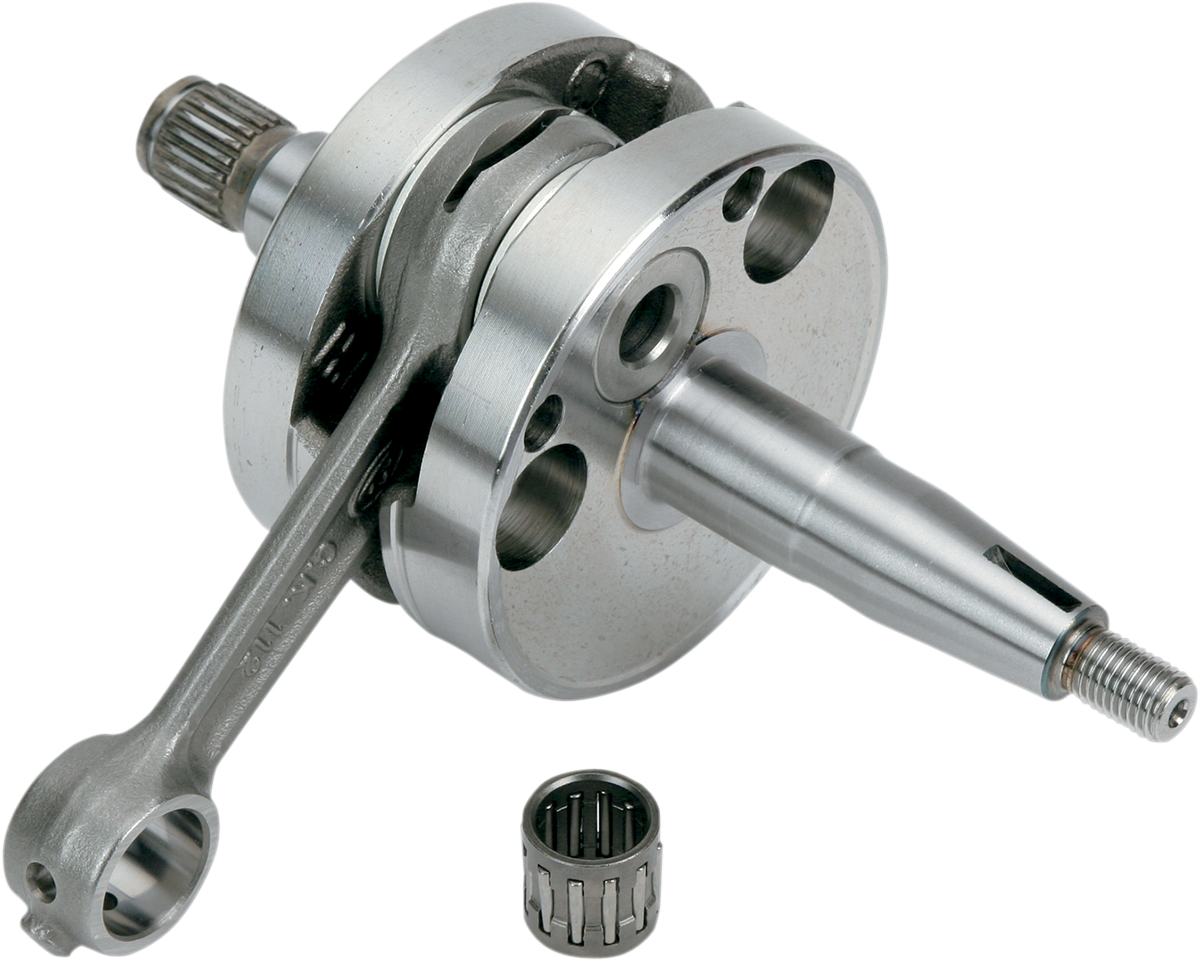

| Product Name | Crankshaft Assembly |
| Riding Style | ATV |
| Stroke Length | 29.00 mm / 29,00 mm |
| Displacement | Up to 403 cc |
| Color/Finish | Steel |
| Units | Assembly |
| Features | Standard Crankshaft |
| Type | Stroker |
| Model | 2-Cycle |
| Material | 4140 Steel |
- Factory assembled and trued to OEM specifications
- Drop in replacement crankshaft requires no modification unless noted
- CNC machined and dynamically balanced to suit the increased stroke
- Add +2.00 mm to +4.00 mm of stroke depending on application
- Uses stock piston unless noted
- Main bearings not included
- Can be matched with Cylinder Works Big Bore cylinders to get significant displacement and horsepower gains
- Not re-buildable as the rods are shorter than OEM.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 1987-2006 | Yamaha | YFZ350 Banshee |
- MAP:
- Yes
