| Specification | Value |
|---|---|
| Model | 4-Cycle |
| Stroke Length | 68,50 mm / 68.50 mm |

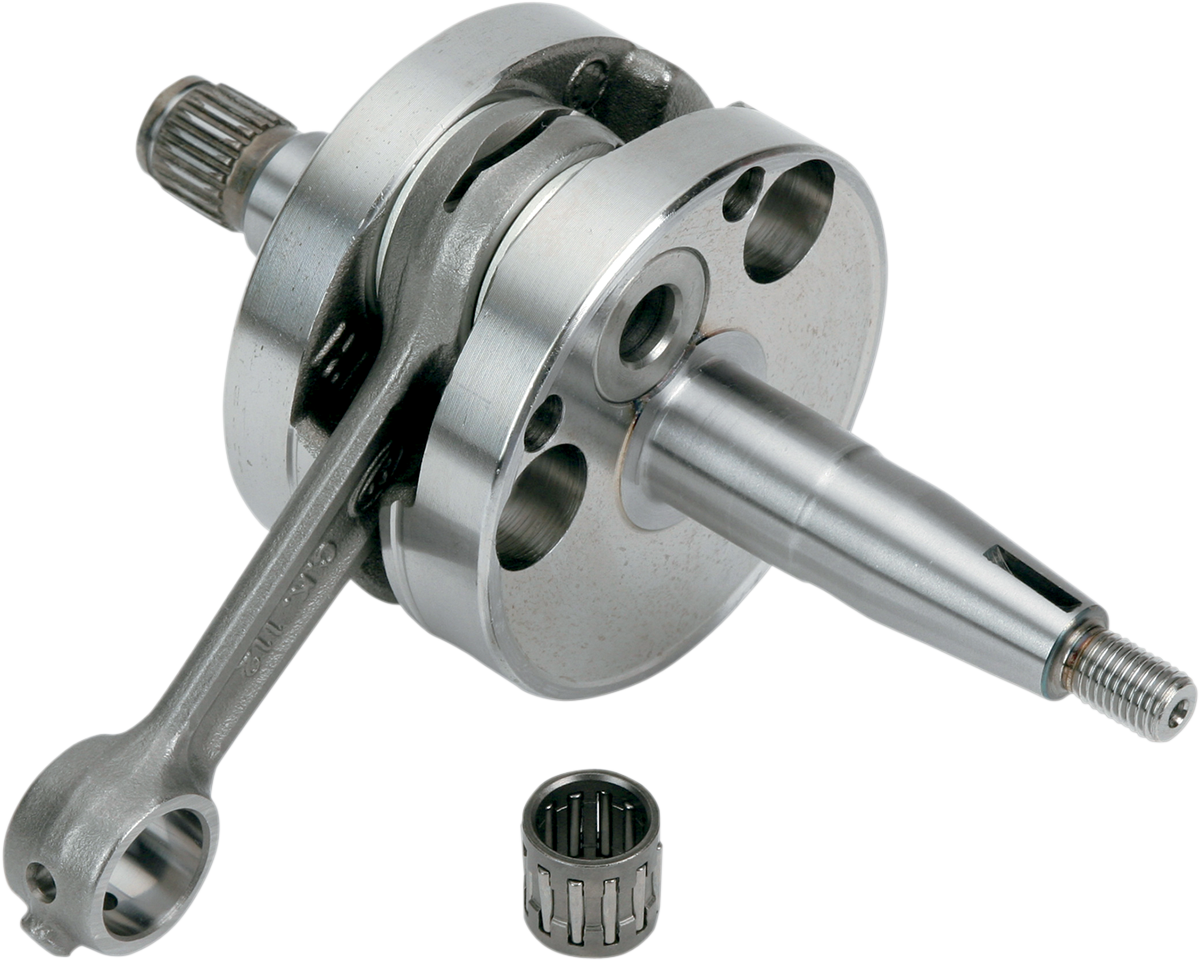

| Product Name | Crankshaft Assembly |
| Color/Finish | Steel |
| Features | Heavy Duty Crankshaft |
| Displacement | 379 cc |
| Type | Stroker |
| Material | 4140 Steel |
| Units | Assembly |
| Riding Style | ATV |
- Factory assembled and trued to OEM specifications
- Drop in replacement crankshaft requires no modification unless noted
- CNC machined and dynamically balanced to suit the increased stroke
- Add +2.00 mm to +4.00 mm of stroke depending on application
- Uses stock piston unless noted
- Main bearings not included
- Can be matched with Cylinder Works Big Bore cylinders to get significant displacement and horsepower gains
- Not re-buildable as the rods are shorter than OEM.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2004-2013 | Yamaha | YFM350 Raptor |
| 1989-2004 | Yamaha | YFM350X Warrior |
