| Specification | Value |
|---|---|
| Brake Calipers | Tektro HDE350 Hydraulic Disc |
| Chainrings | 42T with Narrow Wide Teeth |
| Maximum Rider Weight | 275 lb |
| Shifter | Shimano Alivio 9-Speed Rapidfire Plus |
| Battery Capacity | 48V15Ah / 720 Wh |
| Style | Urban / Hybrid / Leisure |
| Cassette | Shimano Alivio 9-Speed 11-34 Teeth |
| Product Name | Bicycle |
| Riding Style | Bicycle |
| Chain | KMC E9-S |
| Battery | 5000mAh Samsung Cell |
| Type | Electric |

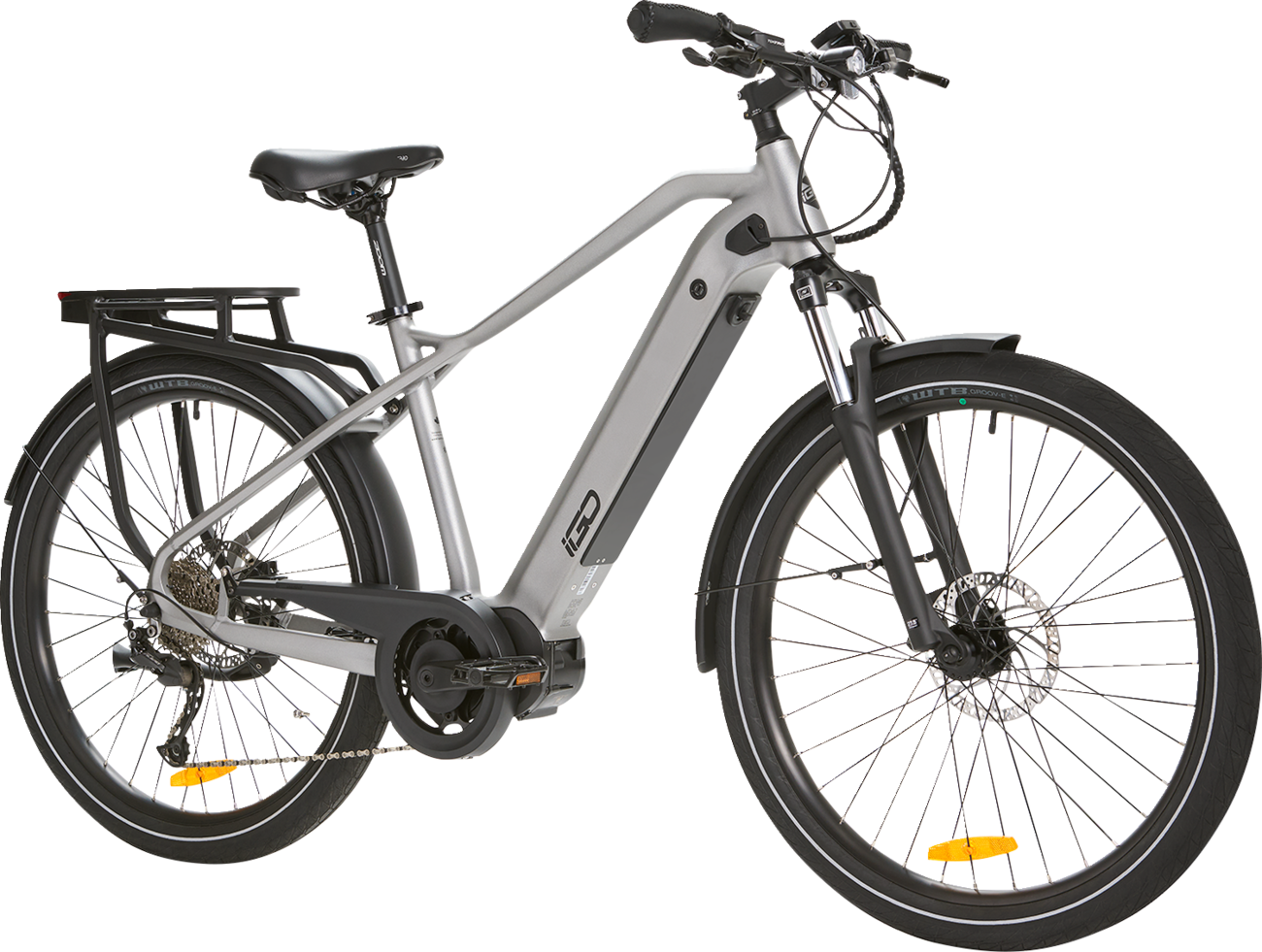

| Model | Discovery LS |
| Rims | 27.5, Dual Wall Alloy, Black |
| Weight | 63.9 lb |
| Brake Lever | Tektro HDE350 |
| Rotors | 180 mm |
| Units | Each |
| Class | Class 2 Model, configurable to Class 1 or Class 3 capable where permitted ** |
| Color/Finish | Silver |
| Motor | iGO Drive LS 350W Mid Motor, 48V |
| Range | 56 miles* |
| Saddle | Selle Royal Rio |
| Tire | WTB Groov-E 27.5 x 2.4, 60tpi |
- Programmed to be 'multi class switchable', this #1 feature allows parameters to be instantly reconfigured at the touch of a button to conform to Class 1, 2, or 3 regulations
- E-Bike with powerful, dynamic motor system delivering the advantages of electric assist to seamlessly enhance the traditional riding experience
- Customizable assist settings to satisfy seasoned riders, enhanced safety features and serviceability built into the fabric or the bike for durability and peace of mind
- City tuned 100 Nm/350 W mid motor with Torque/Cadence sensing and throttle delivers a powerful and intuitive natural riding experience
- 720 Wh battery providing up to 56 mile* range ready everyday with plug and play charging and all day range
- Eco/Tour/Sport/Turbo/Boost user programmable and seamless intelligent riding experience
- Frameset
- Frame Hydroformed Alloy, 27.5" frame, internal cable routing head tube ported, removable down tube battery with security lock, accessory ready rear cargo rack
- Fork RST Blaze-27.5TNL-15, 80 mm travel, lockout, Thru Axle
- Drivetrain
- Shifters Shimano Alivio 9-Speed Rapidfire Plus
- Chainrings 42T with Narrow Wide Teeth
- Chain KMC E9-S
- Rear Derailleur Shimano Alivio 9-Speed
- Cassette Shimano Alivio 9-Speed 11-34T
- Components
- Handlebar 640 mm, 45 mm rise, 31.8 mm diameter
- Grips VELO, Ergonomic, 135 mm
- Stem 80 mm with 7° rise
- Seat Post 31.6 mm (350 mm)
- Saddle Selle Royal Rio
- Brake Levers Tektro HDE350 with power cut-off switch
- Brake Calipers Tektro HDE350 Hydraulic Disc
- Rotors 180 mm
- Wheels
- Tires WTB Groov-E 27.5x2.4, 60tpi
- Rims 27.5, Dual Wall Alloy, Black
- Electric Technology
- Bluetooth iGO Mobile App (Android and iOS), Customizable profile and performance settings with full diagnostic monitoring and alerts
- Display Unit 2 HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist
- Motor iGO Drive LS 350W mid motor, 48V
- Torque up to 100 Nm
- Battery 5000mAh Samsung cell, removable with security lock (48 V | 15 Ah | 720 Wh)
- Range 56 miles*
- Pedal Assist System Eco/Tour/Sport/Turbo/Boost color coded per PAS level
- Throttle On-Demand, Removable
- Sensor Internal Torque, Cadence, Speed
- Class Class 2 Model, configurable to Class 1 or Class 3 capable where permitted**
- Accessories Included
- Front LED light XC-259A (powered by main battery), Rear LED SPANNINGA LED Commuter Glow XE with brake light Integrated into rear rack (powered by main battery), Front & Rear Fenders, Rear Cargo Rack Accessory ready, Integrated Chainring Guard, Water Bottle Bosses on Seat Tube, Kickstand, Wellgo Pedals, Bell, Tool Kit, Battery Charger
- Notes
- Battery Weight 7.7 lb
- Weight Capacity 275 lb
- *Actual range may vary depending on Ah of battery rider weight and other riding conditions. Specifications subject to change.
- **Class Regulations: Class 1 (Pedal assist motor with maximum assisted speed 20 mph, Class 2 (Pedal assist motor and throttle with maximum assisted speed 20 mph), Class 3 (Pedal assist motor with maximum assisted speed 28 mph. Throttle will work up to 20 mph).
