| Specification | Value |
|---|---|
| Bore - Oversize | Standard |
| Type | Forged Side Relief Design |
| Compression Ratio | 12.0:1 |
| Displacement | 500 cc |
| Piston Head Shape | Domed |
| Bore Size | 67.00 mm |
| Model | JE Series |
| Units | Kit |
| Product Name | Piston Kit |
| Riding Style | Street |
| Piston Material | Forged 2618 Aluminum |
- JE designs are specifically engineered for extreme applications including professional competition
- Machined from 2618-T6 high tensile forged aluminum
- Domed, dished or flat top features smooth flowing radii; require no deburring or preparation

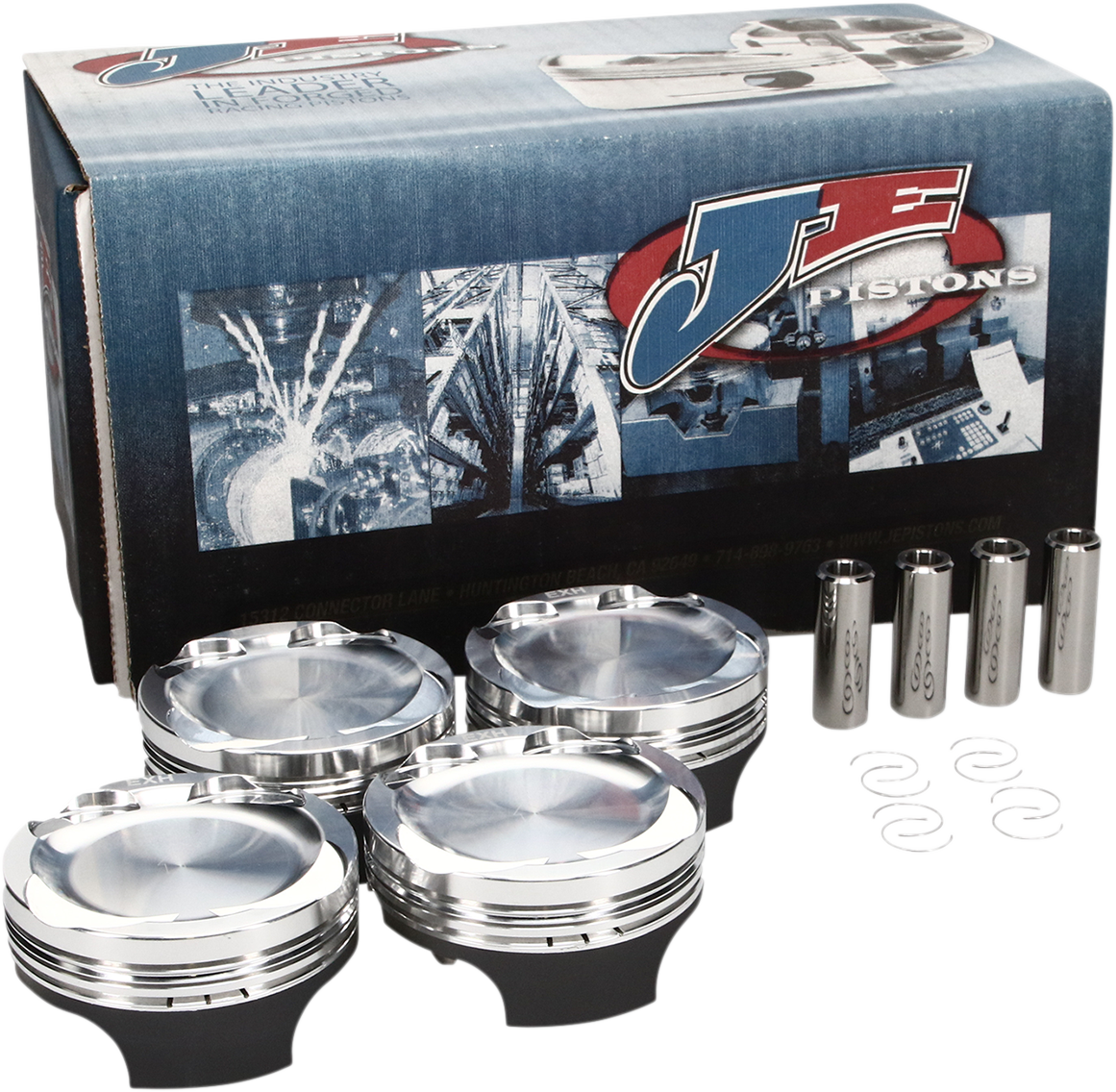

- Kit includes piston(s), wrist pin, circlip and rings unless otherwise noted
- Made in the USA
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2013-2019 | Honda | CB500F |
| 2013-2023 | Honda | CB500F ABS |
| 2013-2019 | Honda | CB500X |
| 2013-2023 | Honda | CB500X ABS |
| 2013-2020 | Honda | CBR500R |
| 2013-2023 | Honda | CBR500R ABS |
- MAP:
- Yes
