| Specification | Value |
|---|---|
| Compatibility | 1078311 / A2500-R2 / AS-35 / ATV2500 / KT2500C / KT4000c / PE3.5 / Provantage 2500 / Provantage 3500 / Terra 2500 SR / UT3000 / Vantage 3000 / Venom 2500 / Venom 3500 / VRX-45 / XRC 2.0 / AM-25 / ATV3000 / KT2000 / KT3000C / LT2000 / LT2500 / Powermax 3500 / RT/XT30 / RT/XT40 / Terra 3500 SR / Venom 4000 / 1.5ci / AS-50wx / KT2500 / KT4000 / RP 25 / SE45w-R2 / Terra45 / U2500 / VMX2.5 / VRX-25S / VRX-35S / VRX-45S / 1078088 / SE35 / SE45-R2 / U45-R2 / Venom 2000 / XRC 3.0 / 3.0ce / 3.0s / A3000 / PE2000 / Terra25 / Terra35 / Vantage 2000 / Vantage 4000 / VRX-25 / Work Power 2500 / X4000 / 2.5ce / 3.0ci / A2000 / A2500 / AM-35 / AS-50x / LT3000 / LT4000ATV / LT4000SR / PE2.5 / PE2500 / Provantage 4500 / RT/XT15 / Terra 4500 SR / U45w-R2 / Venom 4500 / Venom 5000 / VRX-35 / XRC 4.0 / 1078302 / 2.5ci / KFI ST17 / KT3000 / LT4000UTV / PE3000 / RT/XT25 / SE25 / A3500 / AS-25 / PE3500 / Powermax 2500 / RP 35 / Venom 3000 / X3000 |

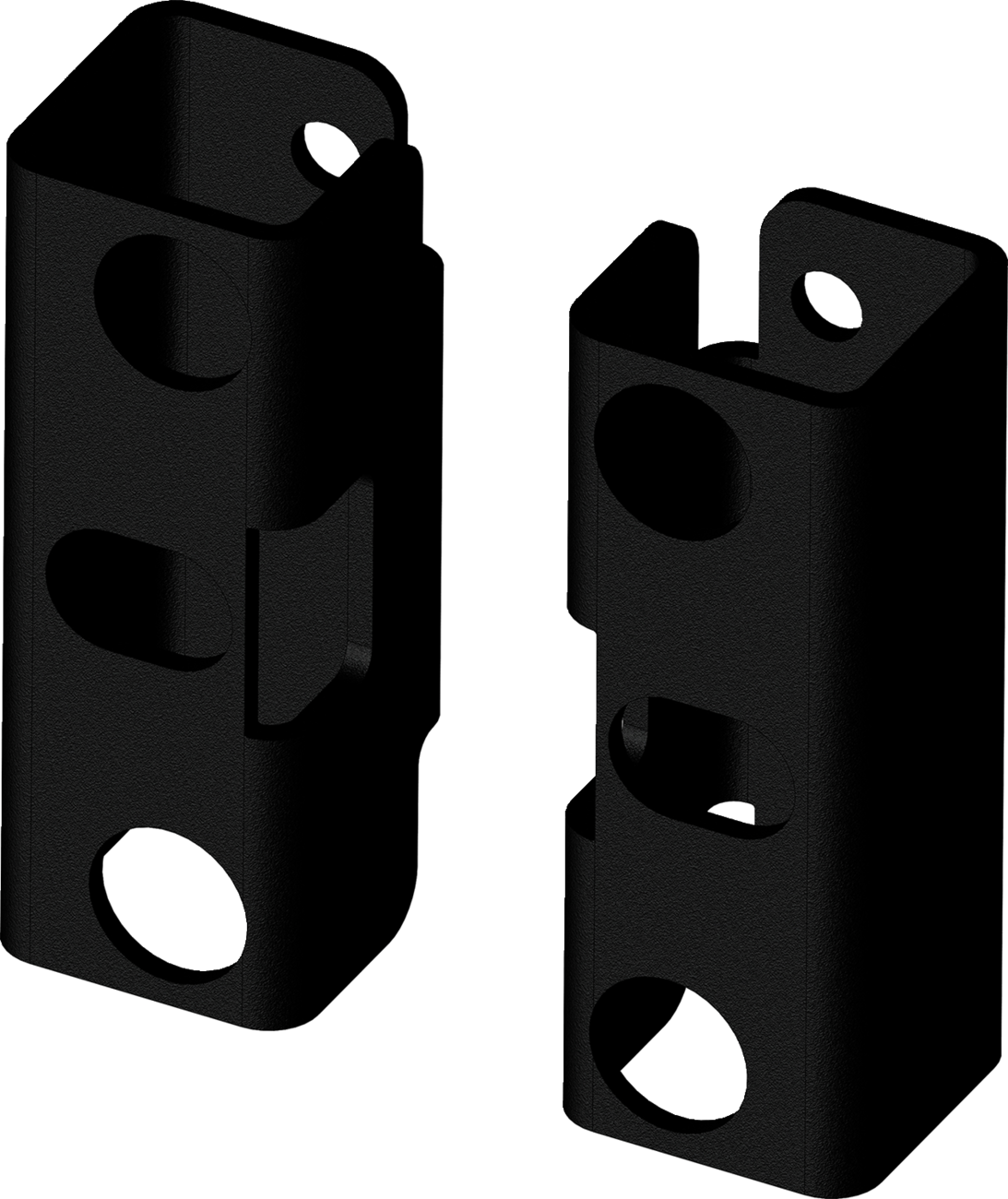

| Product Name | Bracket |
| Color/Finish | Black / Powder-Coated |
| Units | Each |
| Material | Steel |
| Type | Fairlead |
| Riding Style | UTV |
- Constructed of 1/4" steel
- Metal bead blasted then powder-coated for best possible finish prep and durability
- Very easy to install
- Complete installation instructions included
- 100% made in the USA
- Mount designed to work with the following winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
- KFI: AM-25 / AM-35 / AS-25 / AS-35 / AS-50x / AS-50wx
- WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN: RT40 / XT40
- WARN: Vantage 2000-3000 lbs / ProVantage 2500-3500 lbs
- WARN: Vantage 4000 lbs / ProVantage 4500 lbs (will use wide fairlead that comes with winch)
- RAMSEY: ATV2500 / ATV3000
- SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
- MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- CYCLE COUNTRY: Work Power 2500 / PowerMax 2500 and 3500
- BADLAND, CHAMPION: 2-hole winches (requires additional part #4505-1069)
- BADLAND: standard and wide winches
- CHAMPION: ATV 4-hole, UTV 4-hole, and wide winches
- KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
- KEEPER CORP. TRAKKER: KT2000 (requires roller fairlead with a 4.875" bolt pattern and additional part #4505-1069)
- SMITTYBILT: XRC 2.0 (requires additional part #4505-1069)
- SMITTYBILT: XRC 3.0 / XRC 4.0
- XGEAR: X3000 / X4000
- VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series) with 3.00" x 4.875" or 3.00" x 6.600" bolt pattern mount-up
- Traveller: 1078311
- Traveller: 1078088 / 1078302 (require roller fairlead with a 4.875" bolt pattern)
- QUADBOSS: RP25 / RP35
- Possibly many others with 4-hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern) or 4-hole wide (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern) or 2-hole (3.10" with rollers that are 4.875" bolt pattern and additional part #4505-1069)
- Roller fairlead and winch not included.
- If you have a 2-hole winch you will need to purchase additional part #4505-1069.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2015-2017 | Arctic Cat | Prowler 700 |
| 2016-2017 | Arctic Cat | Prowler 500 HDX 4x4 |
| 2015-2016 | Arctic Cat | Prowler 1000 |
| 2015 | Arctic Cat | Prowler 550 |
| 2016-2017 | Arctic Cat | Prowler 700 HDX 4x4 |
| 2015 | Arctic Cat | Prowler 550 EFI 4x4 |
| 2017 | Arctic Cat | Prowler 700 HDX Crew |
- MAP:
- Yes
- Color:
- Black
