| Specification | Value |
|---|---|
| Compatibility | 1078302 / 3.0ci / A3500 / KFI S2000 / KFI ST17 / KT3000 / RT/XT25 / SE25 / Venom 3000 / AM-25 / ATV3000 / KT3000C / LT2000 / LT2500 / Powermax 3500 / RT/XT30 / RT/XT40 / Venom 4000 / 1.5ci / A2000 / AM-35 / LT3000 / PE2.5 / PE2500 / RT/XT15 / SE45w-R2 / U2500 / U45w-R2 / Venom 4500 / Venom 5000 / VRX-35 / XRC 4.0 / 1078088 / AS-50 / SE35 / SE45-R2 / U45-R2 / Venom 2000 / Work Power 1500 / XRC 3.0 / 14001 / AS-25 / PE3500 / Powermax 2500 / X3000 / 14061 / 3.0ce / AS-35 / Axon 35 / Axon 45 / PE2000 / Provantage 2500 / Provantage 3500 / Terra25 / Vantage 3000 / Vantage 4000 / Venom 2500 / XRC 2.0 / A2500 / Axon 45RC / Axon 55 / KT2500 / KT4000 / LT4000ATV / Provantage 4500 / Terra45 / VMX2.5 / 1078311 / A2500-R2 / A3000 / ATV2500 / KT2500C / KT4000c / PE3.5 / Terra35 / Vantage 2000 / Venom 3500 / VRX-25 / VRX-45 / Work Power 2500 / X4000 |
| Mounting Position | Front / Rear |
| Riding Style | UTV |
| Material | Steel |
| Product Name | Mounting Kit |
| Color/Finish | Black / Powder-Coated |
| Type | Winch |
| Units | Kit |
- This kit will allow you to mount your winch on the front or the rear using the stock rear 2" receiver and the supplied front 2" receiver
- Constructed of 3/16" steel
- Metal bead blasted before they are powder coated for the best possible finish prep and durability
- Complete installation instructions included
- All mounting hardware included
- Roller fairlead and winch not included
- 100% made in USA

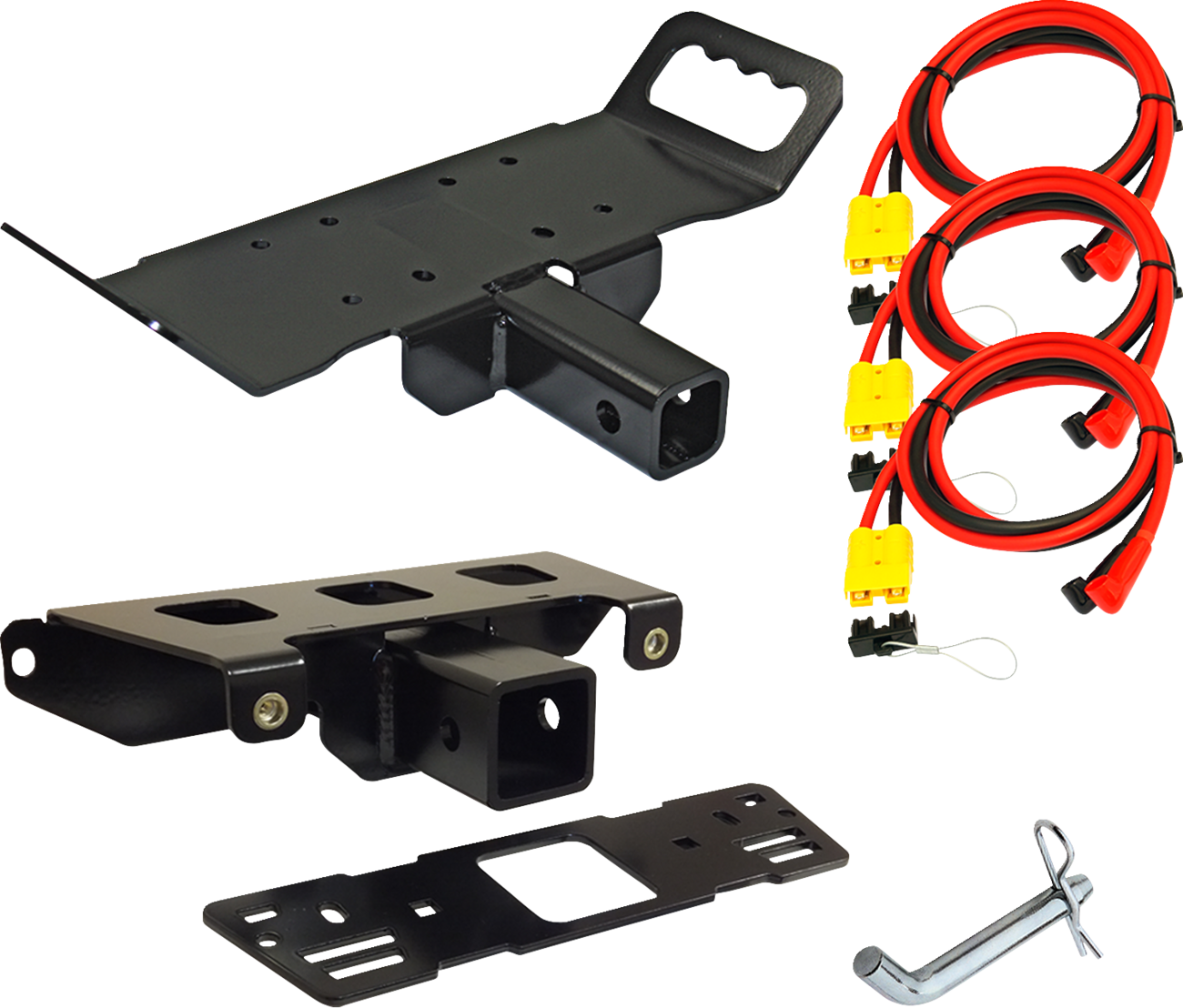

- Kit includes the following:
- Front Upper 2" Receiver #4504-0236
- 2" Receiver Winch Mount #4505-1072
- 20" Quick Connect that gets wired to your winch leads #4505-0962
- 48" Quick Connect that goes from your winch contactor to the front of your Ranger #4505-0963
- 120" Quick Connect that goes from your winch contactor to the rear of your Ranger #4505-0961
- Standard 5/8" Hitch Pin
- Designed to work with the following winches:
- KFI: ST17 / S2000 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
- WARN: AXON 35 / AXON 35-S / AXON 45RC / AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs / Vantage 4000lbs / Provantage 4500lbs
- WARN: RT40 / XT40
- RAMSEY: ATV2500 / ATV3000
- SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
- MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- MASTER LOCK: 1500lbs #2955AT requires roller fairlead with a 4.875" bolt pattern
- CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
- BADLAND: Apex 5500 Wide
- BADLAND, CHAMPION: 2-Hole Winches, Standard Winches, Wide Winches
- CHAMPION: 14001 and 14061
- SMITTYBILT: XRC 2.0 requires roller fairlead with a 4.875" bolt pattern
- SMITTYBILT: XRC 3.0 / XRC 4.0
- XGEAR: X3000 / X4000 4-Hole Standard (3.00" x 4.875" bolt pattern)
- KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
- VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 Hardcore Series with 3.00" x 4.875" or 3.00" x 6.600" bolt pattern mount-up
- Traveller: 1078311
- Traveller: 1078088 / 1078302 requires roller fairlead with a 4.875" bolt pattern
- Possibly many others with 4-Hole 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern, or 4-Hole WIDE 3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern, or 2-Hole 3.10" with rollers that are 4.875" bolt pattern
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2015-2017 | Polaris | Ranger Diesel |
| 2015 | Polaris | Ranger 570 EPS Full-Size |
| 2015, 2017 | Polaris | Ranger Diesel HST Deluxe |
| 2017 | Polaris | Ranger XP 1000 EPS Northstar HVAC Edition |
| 2016 | Polaris | Ranger 1000 Diesel HST Deluxe 4x4 |
| 2017 | Polaris | Ranger XP 1000 |
| 2016 | Polaris | Ranger 1000 Diesel HST 4x4 |
| 2014, 2015, 2017 | Polaris | Ranger Diesel HST |
| 2016 | Polaris | Ranger 570 XP |
