Kfi Products Multi-Mount Winch - Polaris Ranger UTV-875

• This kit will allow you to mount your winch on the front or the rear using the stock rear 2" receiver and the supplied front 2" receiver
• Constructed of 3/16" steel
• Metal bead blasted before they are powder coated for the best possible finish prep and durability
• Complete installation instructions included
• All mounting hardware included
• Roller fairlead and winch not included
• 100% made in USA

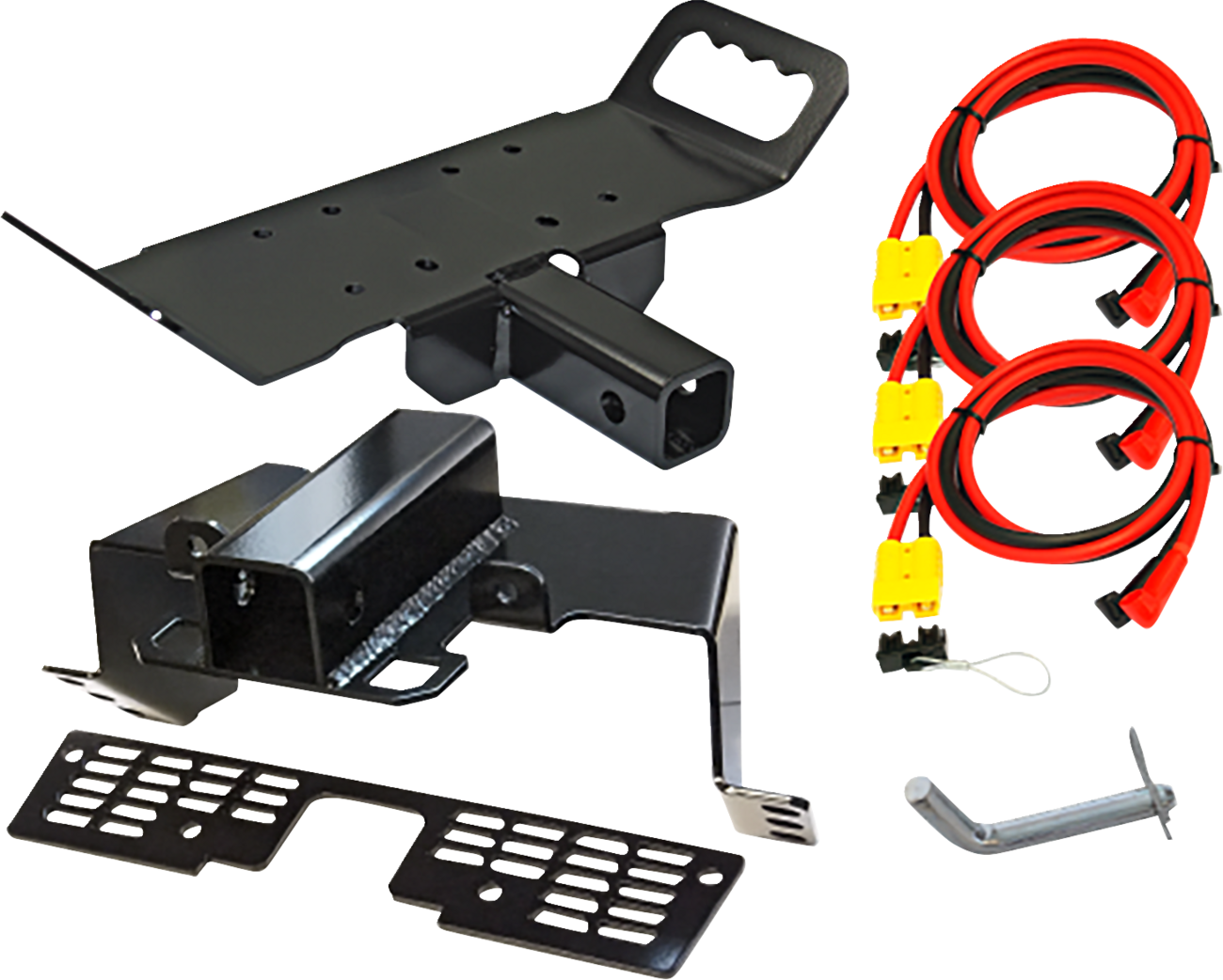

• Kit includes the following:
• Front Upper 2" Receiver #4504-0236
• 2" Receiver Winch Mount #4505-1072
• 20" Quick Connect that gets wired to your winch leads #4505-0962
• 48" Quick Connect that goes from your winch contactor to the front of your Ranger #4505-0963
• 120" Quick Connect that goes from your winch contactor to the rear of your Ranger #4505-0961
• Standard 5/8" Hitch Pin
• Designed to work with the following winches:
• KFI: ST17 / S2000 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
• WARN: AXON 35 / AXON 35-S / AXON 45RC / AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs / Vantage 4000lbs / Provantage 4500lbs
• WARN: RT40 / XT40
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
• MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• MASTER LOCK: 1500lbs #2955AT requires roller fairlead with a 4.875" bolt pattern
• CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
• BADLAND: Apex 5500 Wide
• BADLAND, CHAMPION: 2-Hole Winches, Standard Winches, Wide Winches
• CHAMPION: 14001 and 14061
• SMITTYBILT: XRC 2.0 requires roller fairlead with a 4.875" bolt pattern
• SMITTYBILT: XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000 4-Hole Standard (3.00" x 4.875" bolt pattern)
• KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 Hardcore Series with 3.00" x 4.875" or 3.00" x 6.600" bolt pattern mount-up
• Traveller: 1078311
• Traveller: 1078088 / 1078302 requires roller fairlead with a 4.875" bolt pattern
• Possibly many others with 4-Hole 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern, or 4-Hole WIDE 3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern, or 2-Hole 3.10" with rollers that are 4.875" bolt pattern
