| Specification | Value |
|---|---|
| Color/Finish | Black / Powder-Coated |
| Compatibility | 3.0s / Axon 35-s / Axon 45 / KT4000c / Provantage 3500 / Terra 2500 SR / U45-R2 / UT3000 / Venom 2500 / Venom 3500 / VRX-45 / A2000 / AM-35 / Axon 55 / PE2000 / Powermax 2500 / Provantage 4500 / U2500 / Venom 5000 / VRX-25 / Powermax 3500 / RT/XT40 / Venom 2000 / Venom 4000 / 3.0ci / A2500 / A2500-R2 / AS-50x / Axon 45RC / Axon 45-s / Axon 55-s / KT2500C / PE2.5 / PE3.5 / RT/XT15 / SE45w-R2 / U45w-R2 / XRC 4.0 / 1.5ci / 2.5ce / 3.0ce / A3000 / AS-35 / Axon 35 / LT2000 / Provantage 2500 / Terra 4500 SR / Vantage 2000 / Vantage 3000 / Vantage 4000 / Work Power 2500 / X4000 / XRC 2.0 / 1078311 / AM-25 / ATV2500 / KT2000 / KT3000 / KT3000C / RT/XT30 / SE45-R2 / Terra 3500 SR / Work Power 1500 / 1078088 / 1078302 / 2.5ci / KFI ST17 / PE2500 / PE3000 / RT/XT25 / SE25 / Venom 4500 / VRX-35 / AS-25 / ATV3000 / KT2500 / KT4000 / PE3500 / SE35 / Terra45 / Venom 3000 / VMX2.5 / VRX-25S / VRX-35S / VRX-45S / X3000 / XRC 3.0 |
| Type | Winch |
| Units | Each |
| Material | Steel |

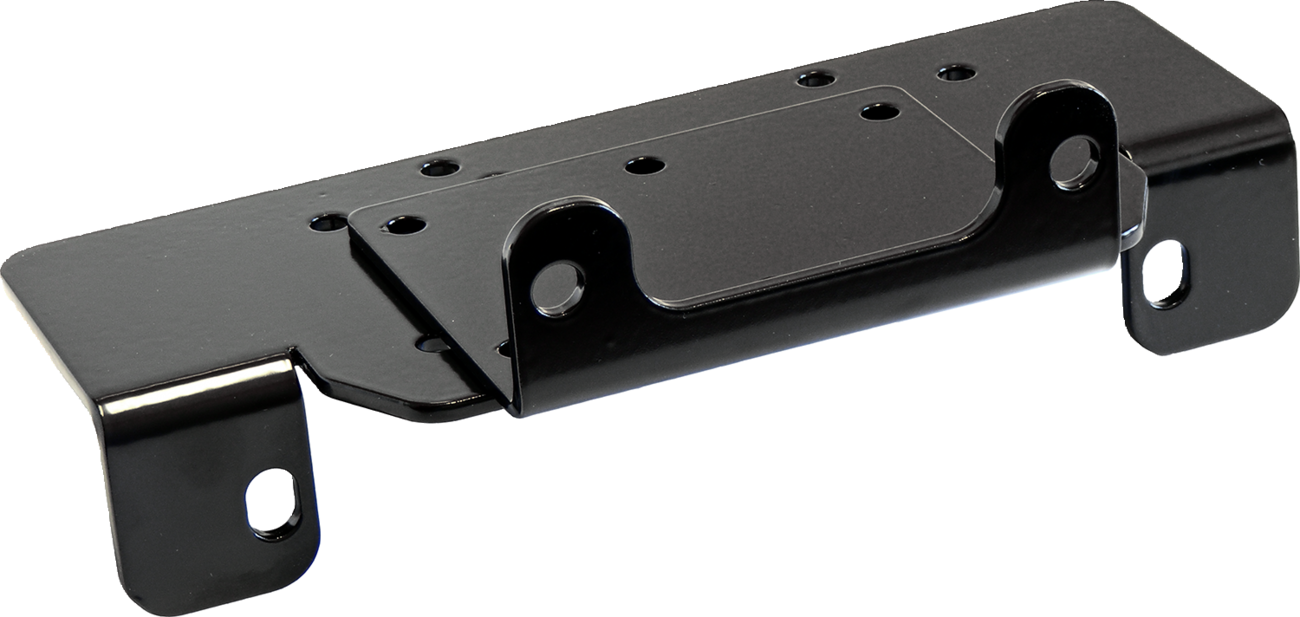

| Product Name | Mounting Kit |
| Riding Style | UTV |
- Constructed of 3/16" steel
- Includes standard roller fairlead bracket
- Mounts are metal bead blasted before being powder-coated for best possible finish and durability
- Very easy to install
- Complete installation instructions and hardware included
- 100% made in the USA
- Designed to work with the following winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
- KFI: AM-25 / AM-35 / AS-25 / AS-35 / AS-50x
- WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40
- WARN: Vantage 2000-3000 lbs / ProVantage 2500-3500 lbs
- WARN: Vantage 4000 lbs / ProVantage 4500 lbs
- WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S (requires standard fairlead bracket #4505-1086)
- WARN: VRX 45 / VRX 45-S (requires Wide fairlead bracket #4505-1073)
- WARN: AXON 35 / AXON 35-S / AXON 45RC (requires Standard fairlead bracket #4505-1086)
- WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S (requires Wide fairlead bracket #4505-1073)
- RAMSEY: ATV2500 / ATV3000
- SUPERWINCH: Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / LT2000 / UT3000
- MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- MASTER LOCK: 1500lbs #2955AT (requires roller fairlead with a 4.875" bolt pattern such as #4505-0953)
- CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500 and 3500
- BADLAND: 2-hole, standard, and wide winches
- CHAMPION: 2-hole, ATV 4-hole, UTV 4-hole, and wide winches
- KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
- KEEPER CORP. TRAKKER: KT2000 (requires roller fairlead with a 4.875" bolt pattern)
- SMITTYBILT: XRC 2.0 (requires roller fairlead with a 4.875" bolt pattern such as #505-0953)
- SMITTYBILT: XRC 3.0 / XRC 4.0
- XGEAR: X3000 / X4000 4-hole standard (3.00" x 4.875" bolt pattern)
- VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (hardcore series) with 3.00" x 4.875" or 3.00" x 6.600" bolt pattern mount-up
- Traveller: 1078311
- Traveller: 1078088 / 1078302 (requires roller fairlead with a 4.875" bolt pattern)
- Possibly many others such as 4-hole 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern, 4-hole wide 3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern, or 2-hole 3.10" with rollers that are 4.875" bolt pattern
- Roller fairlead and winch not included.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2007-2013 | Kubota | RTV1100 |
| 2014-2015 | Kubota | RTV 1100 |
- MAP:
- Yes
- Color:
- Black
