| Specification | Value |
|---|---|
| Collar Material | Titanium |
| Valve Seat Height | 1.295" |
| Spring Lift | 0.435" / 0,435" |
| Stem Diameter | 0.1961" / 5.00 mm |
| Type | Conversion |
| Application | Intake |
| Length | 3.450" |
| Head Diameter | 1.299" / 33.00 mm |
| Product Name | Valve and Spring Kit |
| Riding Style | Off-Road |
| Material | Black Diamond Stainless |
| Units | Kit |
| Spring Open Pressure | 209 lb |
| Spring Seat Pressure | 70 lb |
| Tulip Angle | 16° |
- Stainless steel conversion kit includes only what's needed to convert your head to the long-life stainless steel Black Diamond intake valves
- Extends the life of the valvetrain and intake components by as much as 4x over the OEM titanium parts

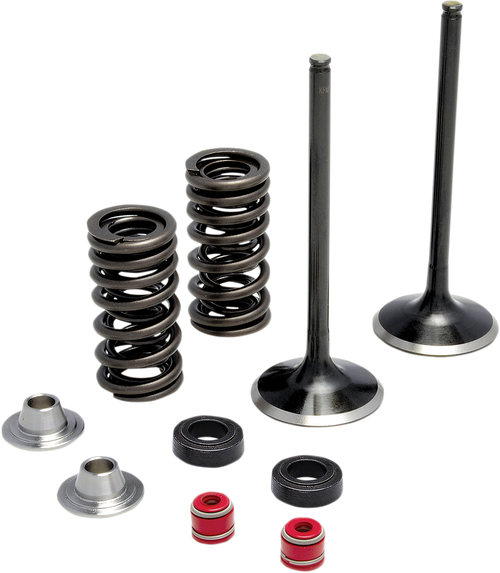

- Includes forged one-piece stainless steel intake valves, wound chrome-silicon heat-treated wire valve springs, ultra-light titanium retainers and hardened steel bases
- Components are created using Finite Element Analysis (F.E.A.) software, as well as proprietary camshaft analysis and spring design software
- Specifically designed and engineered for each application
- Made in the USA
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2018-2021 | Honda | CRF250R |
| 2018-2021 | Honda | CRF250RX |
