| Specification | Value |
|---|---|
| Displacement | 581 cc |

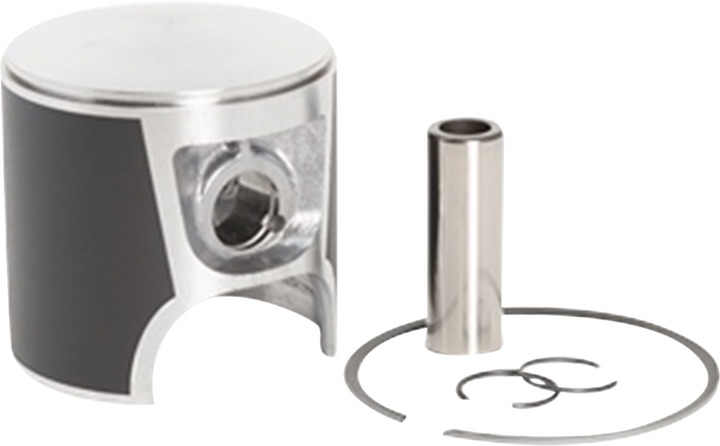

| Product Name | Piston Kit |
| Style | High Performance |
| Piston Material | Cast / Aluminum |
| Skirt Coating | PTFE |
| Riding Style | Snow |
| Bore Size | 76.00 mm |
| Engine Type | 2-Stroke |
| Units | Kit |
| Bore Oversize | +0.040" |
- High performance, long life, die-cast pistons
- Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls
- All pistons, rings, pins and circlips are manufactured to OEM specifications
- All individual components will interchange with original parts
- PTFE coated to create the least amount of friction during break-in period
- All pistons are priced with ring(s), wrist pins and circlips
- Chrome plated rings cannot be used in chrome plated or electrofusion liners.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 1997 | Ski-Doo | Formula 583 |
| 1996-1999 | Ski-Doo | Formula Z 583 |
| 1998 | Ski-Doo | MX Z 583 |
| 1998-1999 | Ski-Doo | Formula Deluxe 583 |
| 1996-1998 | Ski-Doo | Summit 583 |
| 1996 | Ski-Doo | Formula 583 STX |
| 1996 | Ski-Doo | Grand Touring 580 |
| 1997-1999 | Ski-Doo | Grand Touring 583 |
- Supplier:
- Parts Unlimited
