| Specification | Value |
|---|---|

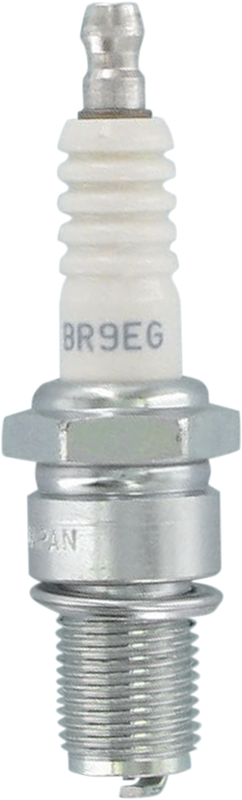

| Product Name | Spark Plug |
| Spark Gap | 0,6 mm (0,025") / 0.025" / 0.6 mm |
| Style | Standard |
| Center Electrode Type | Standard |
| Electrical Resistance | 5k Ohms |
| Center Electrode Projection | Non-Projected |
| Riding Style | Off-Road / Street |
| Thread Reach | 19.1 mm |
| Electrode Tip Material | Nickel Alloy |
| Ground Electrode Configuration | Single |
| Units | Each |
| Ground Electrode Shape | Standard |
| Terminal Configuration | Removable Nut |
| Heat Range | 9 |
| Hex Size | 20.6 mm |
| Model | BR9EG |
| Type | Resistor |
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Triple seals prevent leakage
- Corrugated ribs prevent flashover
- Copper core aids in heat removal
FITMENTS
| Year | Make | Model |
|---|---|---|
| 1981-2007 | Honda | CR125R |
| 1981-2007 | Honda | CR250R |
| 1999-2013 | Husqvarna | CR125 |
| 1976, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 | Husqvarna | TC 125 |
| 2014-2020 | Husqvarna | TC125 |
| 2001, 2013 | Husqvarna | WR125 |
| 1999, 2002 | Husqvarna | SM 125 |
| 2002 | Husqvarna | WRE 125 |
| 2002 | Husqvarna | SMS 125 |
| 1994-2002 | Kawasaki | KX60 |
| 1983-1984 | Kawasaki | KX500 |
| 1991 | Kawasaki | KX 100 |
| 1999-2001 | KTM | 200 EXC |
| 1980-1993 | Suzuki | RM125 |
| 1984-1986 | Yamaha | IT200 |
| 1979, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 | Yamaha | YZ 125 F |
| 1980, 1981, 1991, 1992, 1993, 1994, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 | Yamaha | YZ 490 |
| 1982-1990 | Yamaha | YZ490 |
| 1987 | Yamaha | IT 200 |
| 1986 | Yamaha | YZ80 |
| 2004 | Cagiva | Raptor 125 |
