| Specification | Value |
|---|---|
| Type | Non-Resistor |
| Electrical Resistance | - |
| Riding Style | ATV / Off-Road / Street |
| Spark Gap | 0,7 mm (0,028") / 0.7 mm / 0.028" |
| Terminal Configuration | Threaded Stud |
| Units | Each |
| Thread Reach | 12.7 mm |
| Center Electrode Projection | Non-Projected |
| Product Name | Spark Plug |
| Style | Standard |
| Ground Electrode Shape | Standard |
| Heat Range | 7 |
| Center Electrode Type | Standard |
| Electrode Tip Material | Nickel Alloy |
| Ground Electrode Configuration | Single |
| Hex Size | 16 mm |

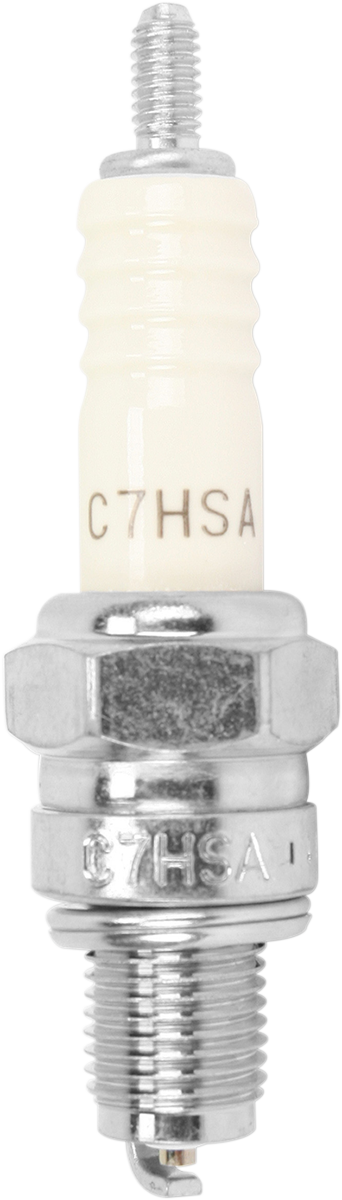

| Model | C7HSA |
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Triple seals prevent leakage
- Corrugated ribs prevent flashover
- Copper core aids in heat removal
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2005-2010 | E-TON | Viper 150R |
| 2000-2001 | E-TON | Yukon |
| 2002-2010 | E-TON | Yukon II CXL 150 |
| 1980-1981 | Honda | C70 |
| 1969-1972 | Honda | CL70 Scrambler |
| 1978-1981 | Honda | CM185T Twinstar |
| 1971-1980 | Honda | CT70 |
| 1971-1975 | Honda | QA50 |
| 1977-1979 | Honda | XL75 |
| 1980-1981 | Honda | XL80S |
| 1973-1978 | Honda | XR75 |
| 1979-1981 | Honda | XR80 |
| 1963 | Honda | CA100 |
| 1965 | Honda | S65 |
| 1971, 1973 | Honda | SL70 |
| 1981 | Honda | XR100 |
| 1974-1976 | Honda | XL70 |
| 1973, 1974, 1978, 1979, 1980, 1981 | Honda | ATC70 |
| 1963 | Honda | CA110 |
| 2002-2004 | Kymco | Filly 50 |
| 2004-2007 | Kymco | Vitality 50 |
| 1989-1998 | Yamaha | YFA-1 Breeze125 |
| 1987-1991 | Yamaha | YFM100 Champ |
