| Specification | Value |
|---|---|
| Spark Gap | 0.028" / 0,7 mm (0,028") / 0.7 mm |
| Type | Resistor |
| Center Electrode Type | Standard |
| Electrode Tip Material | Nickel Alloy |
| Ground Electrode Shape | Standard |
| Hex Size | 17.5 mm |
| Product Name | Spark Plug |
| Style | Standard |
| Thread Reach | 12.7 mm |
| Riding Style | ATV |
| Terminal Configuration | Threaded Stud |
| Units | Each |
| Electrical Resistance | 5k Ohms |
| Ground Electrode Configuration | Single |
| Center Electrode Projection | Non-Projected |
| Heat Range | 8 |

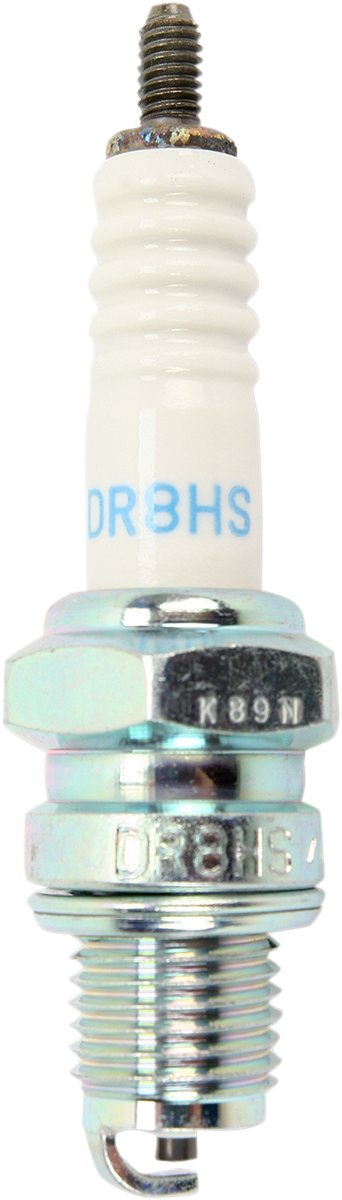

| Model | DR8HS |
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Triple seals prevent leakage
- Corrugated ribs prevent flashover
- Copper core aids in heat removal
FITMENTS
| Year | Make | Model |
|---|---|---|
| 1982-1985 | Honda | ATC110 |
