| Specification | Value |
|---|---|
| Damping Method | Gas Charged |
| Duty | Standard |
| Mounting Position | Rear |
| Riding Style | Street |
| Type | Coilover Monotube |
| Adjustment Style | Automatic |
| Extended Length | 13.00" |
| Spring Type | Single Progressive Rate |
| Color/Finish | Black |

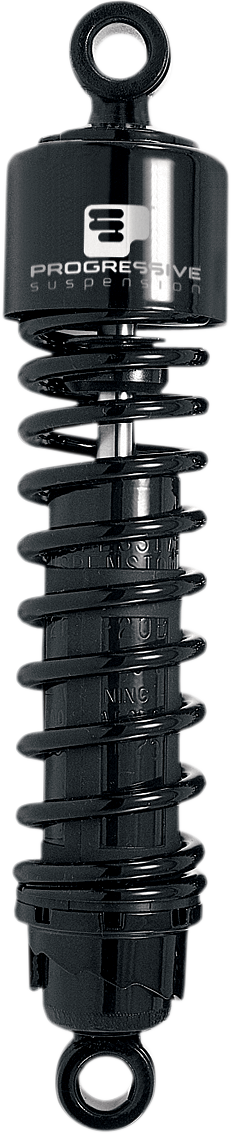

| Product Name | Shock Absorber |
| Progressive Spring Rate | 1.35 kg/mm - 2.15 kg/mm / 75.00 lb/in - 120.00 lb/in |
| Units | Pair |
| Material | Steel |
| Reservoir Location | Internal |
| Model | 412 Series without Covers |
- Designed specifically for Harley models
- The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance
- A five position cam style spring load preload adjuster lets you easily dial in your ride
- Some or all shocks listed are approved for road use. Refer to most recent certificate for current listing
- There are multiple style options available, like full show-chrome or black covers; or either chrome or black springs and end caps
- Made in the USA
- All shocks are measured center-of-eyelet to center-of-eyelet.
- When installing shocks on '86-'15 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.
- A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.
- A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.
- Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.
- Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 1982, 1983, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994 | Harley-Davidson | FXR Super Glide II |
| 1983, 1984, 1987, 1988, 1989, 1990, 1991, 1992 | Harley-Davidson | FXRT Sport Glide |
| 1993 | Harley-Davidson | Sport Glide FXRT |
| 1987-1993 | Harley-Davidson | FXRS-SP Low Rider Sport |
| 1990-1993 | Harley-Davidson | FXRS-Conv Low Rider Sport Convertible |
| 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 2002, 2003 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 1979-1985 | Harley-Davidson | XLS Roadster |
| 1979-1985 | Harley-Davidson | Sportster 750 XR |
| 1996-2003 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 1988-1998 | Harley-Davidson | XLH1200 |
| 1999-2003 | Harley-Davidson | Sportster 1200 XLH |
| 1987-1994 | Harley-Davidson | FXLR Low Rider Custom |
| 1986, 1988, 1999, 2000, 2001 | Harley-Davidson | XLH883 |
| 1979-1985 | Harley-Davidson | XLH1000 |
| 1983-1985 | Harley-Davidson | XR1000 |
| 1987, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 | Harley-Davidson | Sportster 883 XLH |
| 2002-2003 | Harley-Davidson | 1200 Custom EFI XLC |
| 1984, 1987, 1988, 1991, 1992 | Harley-Davidson | FXRS Low Glide |
| 1986, 1987, 1994, 1995 | Harley-Davidson | XLH883DLX Sportster 883 Deluxe |
| 1977-1978 | Harley-Davidson | XLCR Cafe Racer |
| 1983-1985 | Harley-Davidson | XLX 1000 |
| 1989, 1990, 1993 | Harley-Davidson | Low Rider FXRS |
| 1987 | Harley-Davidson | FXRC Low Rider Chrome |
| 2002-2003 | Harley-Davidson | XL883R Sportster 883 Roadster |
| 1986-1987 | Harley-Davidson | XLH1100 |
| 1979 | Harley-Davidson | Café Racer XLCR |
| 1979 | Harley-Davidson | XLCH |
- Color:
- Black
