| Specification | Value |
|---|---|
| Extended Length | 17.50" |
| Model | 512 Series |
| Reservoir Location | Internal |
| Type | Coilover Twin-Tube |
| Units | Each |
| Adjustment Type | Adjustable Rebound Damping |
| Color/Finish | Gray / Black |

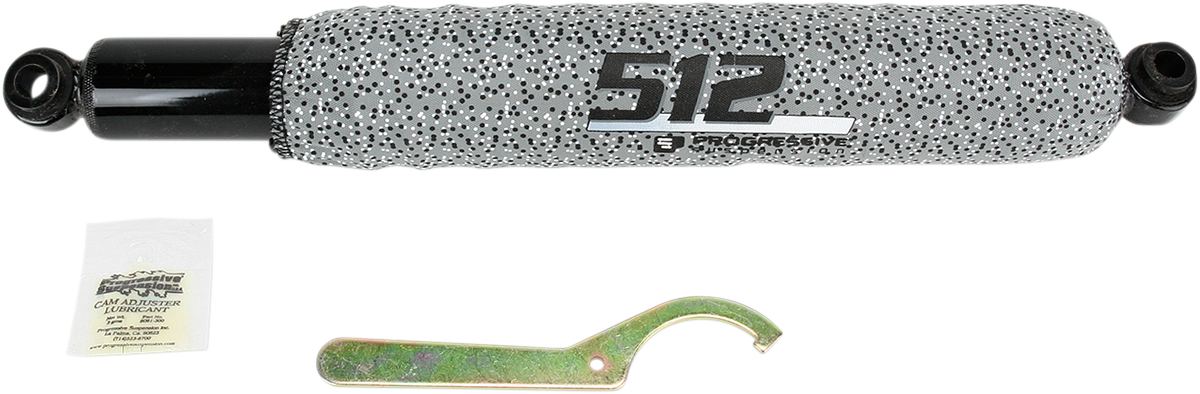

| Product Name | Shock Absorber |
| Damping Method | Gas Charged |
| Riding Style | ATV |
| Progressive Spring Rate | 2.15 kg/mm - 3.00 kg/mm / 120.00 lb/in - 170.00 lb/in |
| Mounting Position | Rear |
| Material | Steel |
| Spring Type | Single Progressive Rate |
- Increase ground clearance and wheel travel 1"-2" on most models
- Rugged double-steel-wall construction
- Progressive rate springs for comfortable ride and improved load-carrying capacity
- Five-position spring pre-load adjustment for varying loads
- Gas charged for fade-free operation
- Durable fabric Shock Sox are included to protect shocks from rock, sand and mud damage
- Shock Sox are easily removable with hook-and-loop fasteners for cleaning and adjustments
- Not compatible with lift kits
FITMENTS
| Year | Make | Model |
|---|---|---|
| 1999-2002 | Kawasaki | KVF300 Prairie 2x4 |
| 1997-2002 | Kawasaki | KVF400 Prairie 4x4 |
| 1998-2002 | Kawasaki | KVF400 Prairie 2x4 |
| 2003-2013 | Kawasaki | KVF360 Prairie 4x4 |
| 1999-2002 | Kawasaki | KVF 300 Prairie |
| 1997-2002 | Kawasaki | KVF 400 A Prairie 4x4 |
| 1997-2002 | Kawasaki | KVF 400 C Prairie 4x4 |
| 1997-2002 | Kawasaki | KVF 400 D Prairie 2x4 |
| 1997-2002 | Kawasaki | KVF 400 D Prairie 4x4 |
| 1997, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 | Kawasaki | KVF 400 Prairie 2x4 |
| 2003-2013 | Kawasaki | KVF 400 Prairie 4x4 |
| 2010-2013 | Kawasaki | KVF 360 Prairie 2x4 |
| 1997-2002 | Kawasaki | KVF 400 B Prairie 2x4 |
| 2003-2009 | Kawasaki | KVF360 Prairie 2x4 |
| 1999-2002 | Kawasaki | KVF300 Prairie 4x4 |
| 1997-2002 | Kawasaki | KVF 400 B Prairie 4x4 |
- Color:
- Gray
