| Specification | Value |
|---|---|
| Features | Knurled Clutch End / Includes Pad / Crossbar |
| Handlebar Diameter | 1-1/8" |
| Riding Style | ATV / Off-Road |
| Material | 7010-T6 Aluminum |
| Type/Bend | Twinwall / RC / Mini |
| Clamping Width | 3-1/8" |
| Color/Finish | Black / Anodized |
| Pullback/Sweep | 1-5/8" |
| Units | Each |
| Width | 29-3/8" |
| Finish | Anodized |

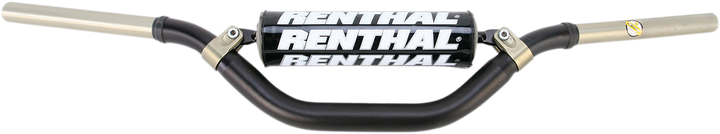

| Product Name | Handlebar |
| Style | Universal |
| Base Color | Black |
| Clamping Diameter | 1-1/8" |
| Controls Diameter | 7/8" |
| Height | 4-7/16" |
| Rise | 3-1/8" |
- Twinwall construction consists of two aluminum alloy tubes, one within the other
- Outer tube is 7010-T73, which has extreme resistance to mechanical damage and is anodized to prevent corrosion
- Inner tube is ultra high strength 7010-T6 aluminum and is hard anodized to resist wear from twist grip and controls
- Rubber seals are used to cover the ends of the outer tube to keep water and cleaning fluids out
- Laser marked in the middle for accurate positioning
- Each handlebar includes an updated injection molded foam bar pad for better protection and greater durability
- Requires model-specific 1-1/8" bar mounts for bikes originally equipped with 7/8" bars
