| Specification | Value |
|---|---|
| Style | Electronic |

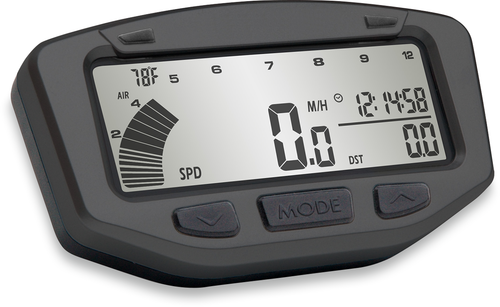

| Model | Vapor |
| Product Name | Gauge |
| Type | Multi-Function Speedometer |
| Riding Style | Street |
| Features | Backlit |
| Units | Each |
| Housing Color | Black |
- Speed, temperature, distance, tachometer and clock
- Speedometer functions: current, average, maximum; selectable mph/kph
- Temperature functions: ambient temp, engine temp with LED alerts, dual programmable temp lights, exact model fit temp sensors; selectable F/C scale
- Distance functions: adjustable distance, permanent odometer; selectable mile/kilometer
- Tachometer functions: real-time rpm bar graph, numeric rpm readout, dual programmable shift lights; up to 20,000 rpm
- Clock functions: hour meter, stop watch, ride time; selectable 12/24 hour display
- Includes universal power connector for all machines and accepts AC and DC power
- Waterproof design with high-intensity LCD white backlight display
- Optional top-mount computer protector available separately.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2000-2018 | Suzuki | DR 200 |
| 2000-2014 | Suzuki | DR 200 S |
| 2015-2020 | Suzuki | DR200S |
| 2022-2025 | Suzuki | DR-Z125L |
| 2008-2011 | Honda | CRF230L |
| 2003-2019 | Honda | CRF230F |
| 2003-2005 | Honda | CRF150F |
| 2005, 2006, 2007, 2008, 2009, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 | Yamaha | TTR230 |
| 2005, 2006, 2007, 2008, 2009, 2011, 2012, 2013, 2014, 2015, 2016, 2017 | Yamaha | TT-R 230 T |
| 2005, 2006, 2007, 2008, 2009, 2011, 2012, 2013, 2014, 2015, 2016, 2017 | Yamaha | TT-R 230 V |
| 2000-2025 | Yamaha | TW200 |
| 2008-2025 | Yamaha | XT250 |
| 2006-2016 | Yamaha | TT-R 230 E |
| 2000-2006 | Yamaha | TTR250 |
| 2010 | Yamaha | TT-R 230 |
| 2000-2004 | Yamaha | TTR225 |
| 2003-2006 | Kawasaki | KLX125L |
- Color:
- Black
