| Specification | Value |
|---|---|
| Riding Style | UTV / ATV |
| Style | Forged High Compression |
| Product Name | Top End Piston Kit |
| Compression Ratio | 11.1:1 |
| Displacement | 700 cc |
| Engine Type | 4-Stroke |
| Skirt Coating | Molybdenum Disulphite |
| Piston Diameter | 101.95 mm |
| Units | Kit |
| Cylinder Diameter | 102.00 mm |
| Piston Material | Forged 2618 Aluminum |
- The piston is heat treated with a T-5 hardening and tempering cycle
- The piston skirt is coated with a high-tech Molybdenum Disulphite coating for faster break-in time and increased piston life
- Forged high compression piston improves power and torque across entire rpm range
- Piston kit is forged from 2618 aluminum

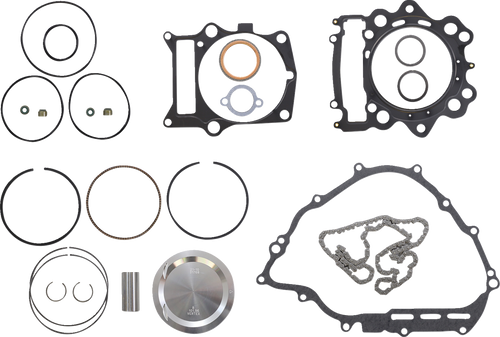

- Top end piston kit includes piston, rings, pins, circlips, top end gaskets, and cam chain
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2007-2013 | Yamaha | YFM700 Grizzly FI 4x4 Auto |
| 2007-2009 | Yamaha | YFM 700 Grizzly AT FI Ducks Unltd Ed. 4x4 |
| 2008-2013 | Yamaha | YXR700F Rhino 700 FI |
| 2009-2013 | Yamaha | YFM700 Grizzly FI 4x4 Auto EPS SE |
| 2008-2012 | Yamaha | YFM700 Grizzly FI 4x4 Auto EPS |
| 2013 | Yamaha | YFM450 Grizzly 4x4 Auto EPS |
| 2007 | Yamaha | YFM 700 Grizzly AT FI Outdoorsman Ed 4x4 |
