| Specification | Value |
|---|---|
| Engine Type | 2-Stroke |
| Compression Ratio | Standard |
| Piston Material | Cast / Aluminum Alloy |
| Product Name | Top End Piston Kit |
| Style | Cast Replica |
| Units | Kit |
| Displacement | 100 cc |
| Piston Diameter | 52.44 mm |
| Cylinder Diameter | 52.50 mm |
| Riding Style | Off-Road |
| Skirt Coating | Molybdenum Disulphite |
- The piston is heat treated with a T-5 hardening and tempering cycle
- The piston skirt is coated with a high-tech Molybdenum Disulphite coating for faster break-in time and increased piston life
- Gravity-cast aluminum alloy (not forged) with 18% silicone content
- Cast OE replacement piston

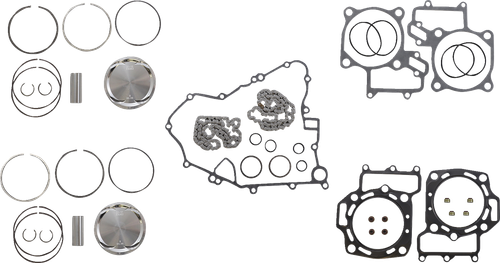

- Top end kit includes piston, rings, pins, circlips, top end gaskets, and wrist pin bearing
FITMENTS
| Year | Make | Model |
|---|---|---|
| 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2011, 2012, 2013 | Kawasaki | KX100 |
| 2010 | Kawasaki | KX 100 |
| 2003 | Suzuki | RM100 |
- Supplier:
- Parts Unlimited
- MAP:
- Yes
