| Specification | Value |
|---|---|
| Cylinder Diameter | 56.00 mm |
| Units | Kit |
| Piston Diameter | 55.96 mm |
| Piston Material | Aluminum Alloy / Cast |
| Product Name | Top End Piston Kit |
| Riding Style | Off-Road |
| Displacement | 144 cc |
| Compression Ratio | Standard |
| Style | Cast Replica |
| Engine Type | 2-Stroke |
| Skirt Coating | Molybdenum Disulphite |
- The piston is heat treated with a T-5 hardening and tempering cycle
- The piston skirt is coated with a high-tech Molybdenum Disulphite coating for faster break-in time and increased piston life
- Gravity-cast aluminum alloy (not forged) with 18% silicone content
- Cast OE replacement piston

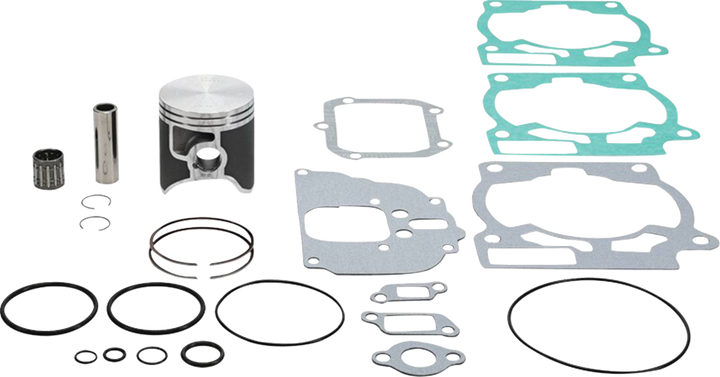

- Top end kit includes piston, rings, pins, circlips, top end gaskets, and wrist pin bearing
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2009-2015 | KTM | 150 SX |
| 2010-2014 | KTM | 150 XC |
| 2007-2008 | KTM | 144 SX |
