| Specification | Value |
|---|---|
| Bore Size | 70.50 mm |
| Stroke Length | 65.80 mm |
| Units | Kit |
| Engine Type | 2-Stroke |
| Bore - Oversize | +1.00 mm / +1,00 mm |
| Product Name | Piston Kit |
| Piston Diameter | 70.41 mm |
| Displacement | 512 cc |
| Riding Style | Snow |
| Piston Material | 4032 Aluminum Alloy |
| Model | Pro-Lite |
| Skirt Coating | Non-Coated |
- Forged from high-silicon alloy for maximum strength and dependability
- Wiseco offers a complete range of popular piston models and years for both trail and racing applications

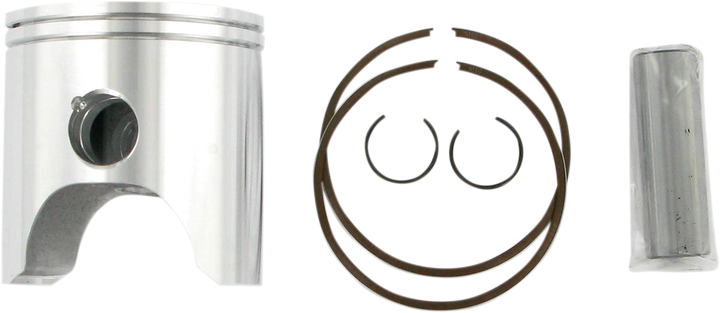

- Kit includes piston, rings, circlips and wrist pin
FITMENTS
| Year | Make | Model |
|---|---|---|
| 1997-1999 | Ski-Doo | Summit 500 |
| 1999-2000 | Ski-Doo | Formula Deluxe 500 LC |
| 1998-1999 | Ski-Doo | MX Z 500 |
| 2001 | Ski-Doo | MX Z 500 Trail |
| 2000 | Ski-Doo | Touring 500 LC |
| 1996-1999 | Ski-Doo | Grand Touring 500 |
| 1998-1999 | Ski-Doo | Skandic 500 WT |
| 1999 | Ski-Doo | Formula 500 Z |
| 2000 | Ski-Doo | Summit 500 |
| 1998 | Ski-Doo | Formula 500 Deluxe LC |
| 2000 | Ski-Doo | Formula 500 LC |
