| Specification | Value |
|---|---|
| Bore - Oversize | +0,50 mm / +0.50 mm |
| Piston Material | 4032 Aluminum Alloy |
| Bore Size | 76.50 mm |
| Skirt Coating | Non-Coated |
| Units | Kit |
| Displacement | 643 cc |
| Engine Type | 2-Stroke |
| Piston Diameter | 76.40 mm |
| Riding Style | Watercraft |
| Model | Forged Series |
| Type | Top End |
| Product Name | Rebuild Kit |
- Pistons are forged from aerospace aluminum alloys
- Ring types are not interchangeable (i.e. CD is not interchangeable with TD).

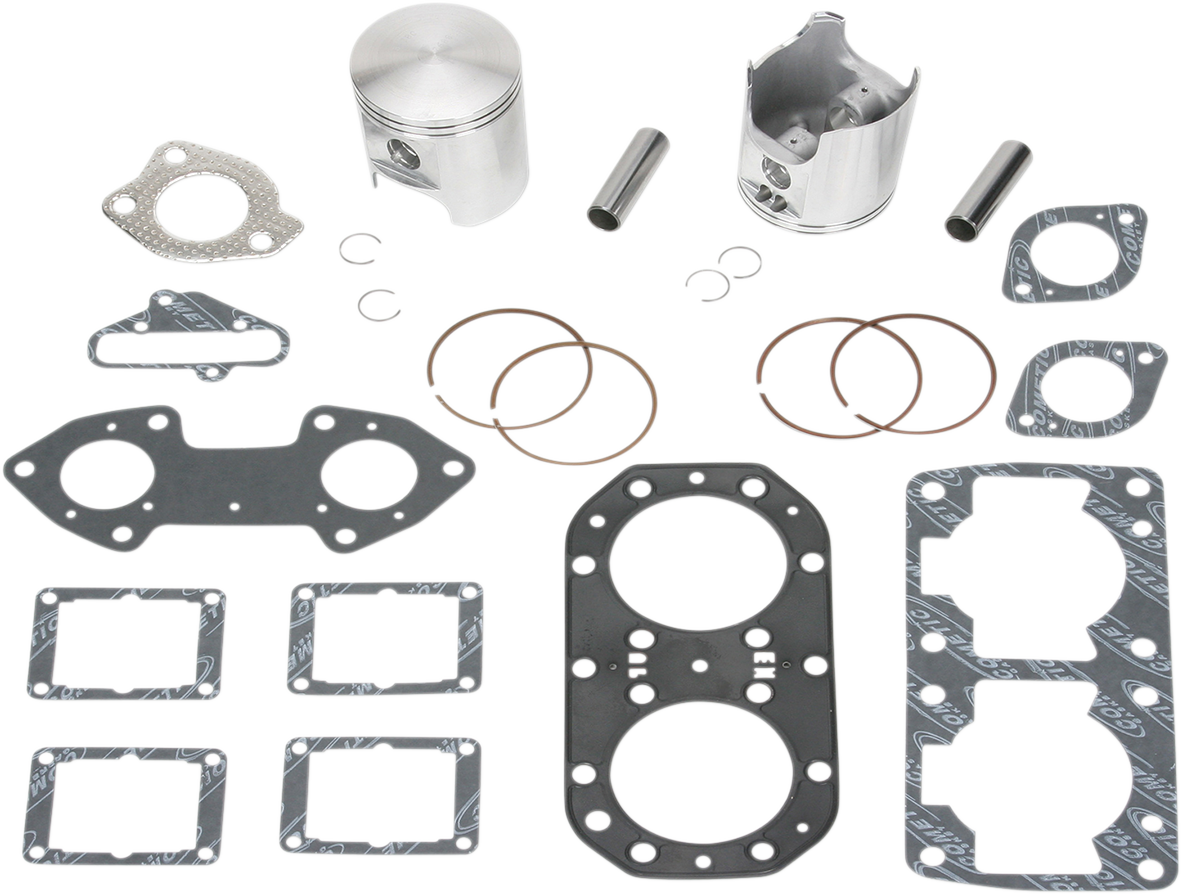

- Kit includes pistons, rings, wrist pin and top end gasket kit
- Wiseco pistons can be fitted only with Wiseco rings.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 1989-1996 | Kawasaki | JF650 TS |
| 1986-1995 | Kawasaki | JF650 X2 |
| 1991-1995 | Kawasaki | JL650 SC |
| 1987-1993 | Kawasaki | JS650 650SX |
- MAP:
- Yes
