| Specification | Value |
|---|---|
| Riding Style | Street |
| Skirt Coating | Non-Coated |
| Displacement | 1015 cc |
| Compression Ratio | 10.25:1 |
| Type | Top End |
| Bore Size | 70.00 mm |
| Color/Finish | Aluminum |
| Model | Forged Series |
| Stroke Length | 65.93 mm |
| Units | Kit |
| Piston Material | Forged 2618 Aluminum |
| Bore - Oversize | +4.00 mm / +4,00 mm |
| Piston Diameter | 69.95 mm |
| Product Name | Rebuild Kit |
| Engine Type | 4-Stroke |

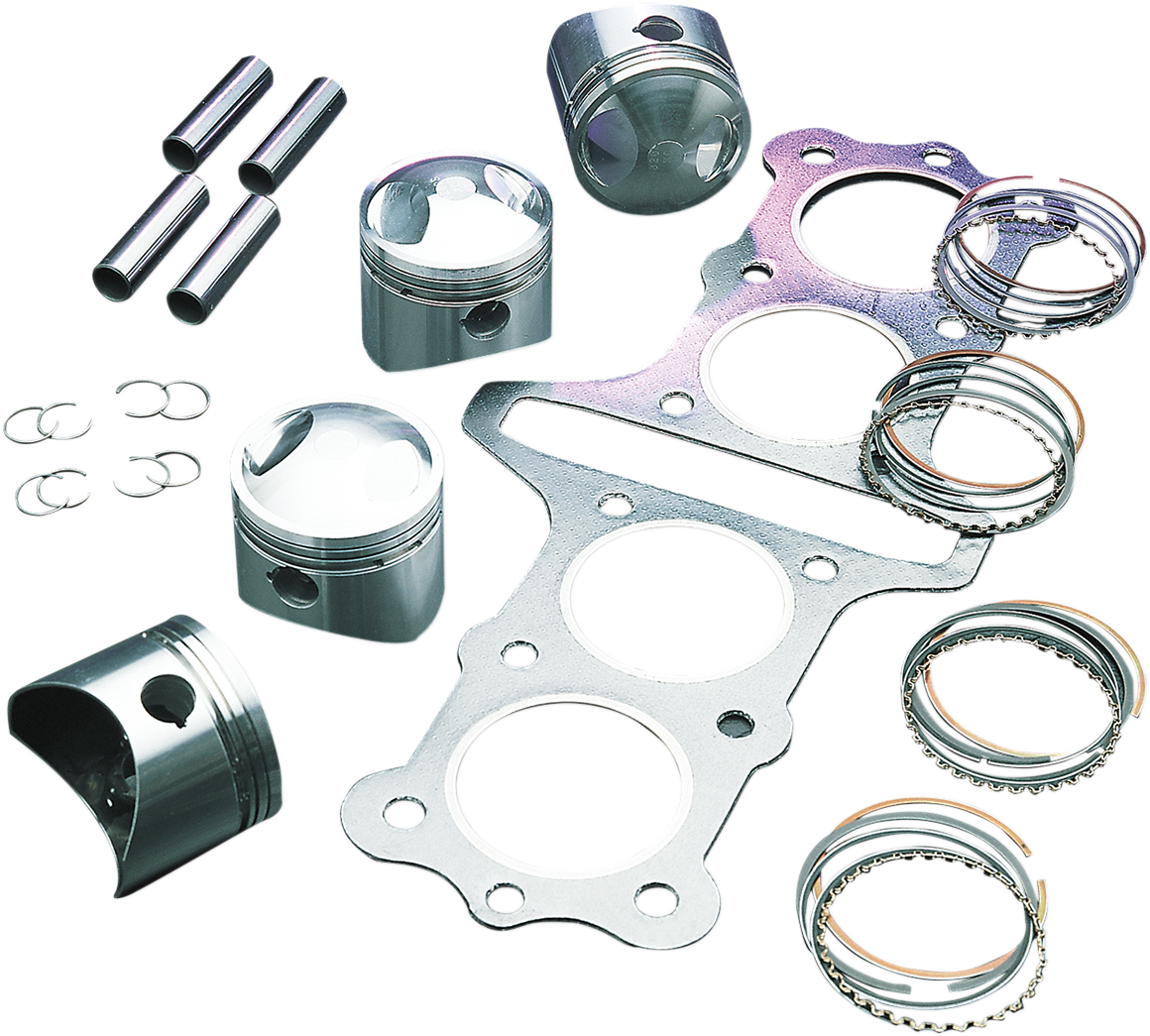

- Complete engine kit includes pistons, ring sets, pistons pins, retainer clips and head gasket
- All Wiseco pistons are forged from aerospace aluminum alloys on Wiseco's state-of-the art forging presses
- Built on a legacy of championships for over 60 years by American craftsmen
- Wiseco pistons have the latest dyno-tested technology to out-perform the competition
FITMENTS
| Year | Make | Model |
|---|---|---|
| 1977-1980 | Kawasaki | KZ1000A/J |
| 1978-1980 | Kawasaki | KZ1000D Z1R |
| 1976-1980 | Kawasaki | KZ 1000 A |
| 1973-1976 | Kawasaki | Z1 900 |
| 1976-1977 | Kawasaki | KZ900/Z1 |
| 1977 | Kawasaki | KZ 1000 D Z1R |
