| Specification | Value |
|---|---|
| Piston Material | 4032 Aluminum Alloy |
| Stroke Length | 46.80 mm |
| Bore - Oversize | +2.00 mm |
| Piston Diameter | 49.95 mm |
| Type | Top End |
| Skirt Coating | ArmorGlide |
| Units | Kit |
| Riding Style | Off-Road |
| Bore Size | 50.00 mm |
| Engine Type | 2-Stroke |
| Model | Pro-Lite |
| Product Name | Rebuild Kit |
| Displacement | 84.7 cc |

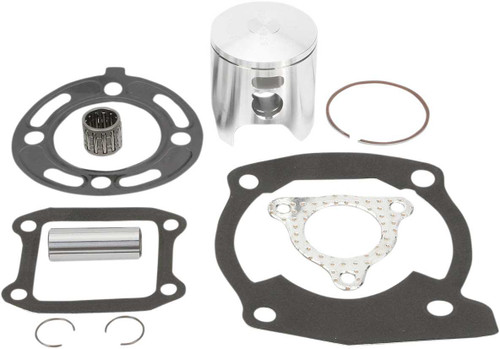

- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco pistons can be fitted only with Wiseco rings
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC).
- Cylinder sleeves must be purchased separately.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2012, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 | Suzuki | RM85 |
| 2010, 2011, 2013, 2014 | Suzuki | RM 85 |
