| Specification | Value |
|---|---|
| Bore - Oversize | Standard |
| Piston Diameter | 53.95 mm |
| Units | Kit |
| Type | Top End |
| Riding Style | Off-Road |
| Bore Size | 54.00 mm |
| Engine Type | 2-Stroke |
| Piston Material | 4032 Aluminum Alloy |
| Skirt Coating | Non-Coated |
| Stroke Length | 54.50 mm |
| Displacement | 125 cc |
| Model | Pro-Lite |
| Product Name | Rebuild Kit |

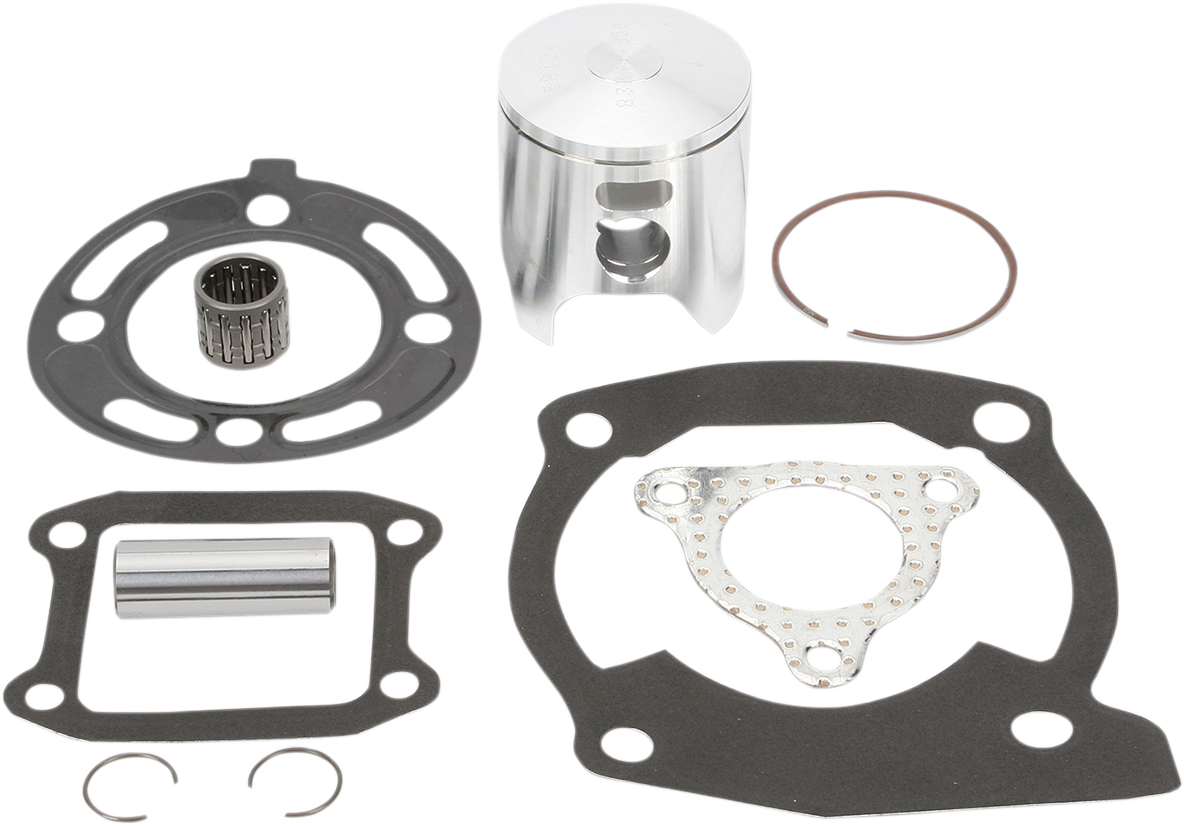

- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco pistons can be fitted only with Wiseco rings
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC).
- Cylinder sleeves must be purchased separately.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 1992-1997 | Honda | CR125R |
