| Specification | Value |
|---|---|
| Engine Type | 4-Stroke |
| Product Name | Rebuild Kit |
| Bore Size | 54.50 mm |
| Piston Material | 4032 Aluminum Alloy |
| Riding Style | Off-Road |
| Stroke Length | 54.00 mm |
| Model | Forged Series |
| Skirt Coating | Non-Coated |
| Compression Ratio | 11.0:1 |
| Units | Kit |
| Displacement | 123.7 cc |
| Piston Diameter | 54.45 mm |
| Type | Top End |

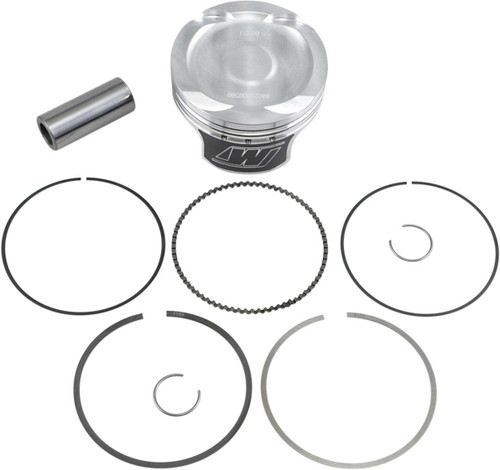

- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2000-2018 | Yamaha | TTR125 |
| 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 | Yamaha | TTR125LE |
| 2003-2009 | Yamaha | TTR125E |
| 2000, 2001, 2002, 2010, 2011, 2012, 2013, 2014, 2015, 2016 | Yamaha | TT-R 125 E |
| 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2011 | Yamaha | TTR125L |
| 2010, 2012, 2013, 2014, 2015, 2016, 2017, 2018 | Yamaha | TT-R 125 L |
| 2010 | Yamaha | TT-R 125 LE |
