| Specification | Value |
|---|---|
| Product Name | Rebuild Kit |
| Type | Top End |
| Model | Pro-Lite |
| Piston Diameter | 73.37 mm |
| Riding Style | Snow |
| Displacement | 509 cc |
| Stroke Length | 60.00 mm |
| Bore - Oversize | +1.50 mm / +1,50 mm |
| Bore Size | 73.50 mm |
| Cooling System | Liquid Cooled |
| Engine Type | 2-Stroke |
| Piston Material | 4032 Aluminum Alloy |
| Skirt Coating | ArmorGlide |
| Units | Kit |
- All the necessary components for overboring or rebuilding your top end

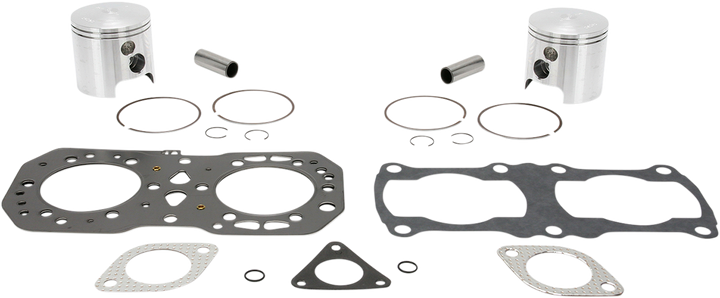

- Kit includes forged pistons, rings, wrist pins, circlips and top end gasket set
- Cylinder sleeves must be purchased separately.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 1989, 1990, 1991, 1993, 1994, 1995 | Polaris | Indy 500 Classic |
| 1989, 1990, 1991, 1995 | Polaris | Indy 500 |
| 1993-1995 | Polaris | Indy 500 EFI |
| 1993-1995 | Polaris | 500 EFI SKS |
| 1992, 1996 | Polaris | Indy 500 SKS EFI |
| 1992 | Polaris | 500 |
| 1991 | Polaris | 500 SKS |
- MAP:
- Yes
