| Specification | Value |
|---|---|
| Type | Top End |
| Product Name | Rebuild Kit |
| Bore - Oversize | Standard |
| Model | Forged Series |
| Skirt Coating | ArmorGlide |
| Units | Kit |
| Engine Type | 4-Stroke |
| Piston Diameter | 77.95 mm |
| Piston Material | 2618 Aluminum Alloy |
| Riding Style | Off-Road |
| Compression Ratio | 13.5:1 |
| Stroke Length | 52.20 mm |
| Bore Size | 78.00 mm |
| Displacement | 249 cc |

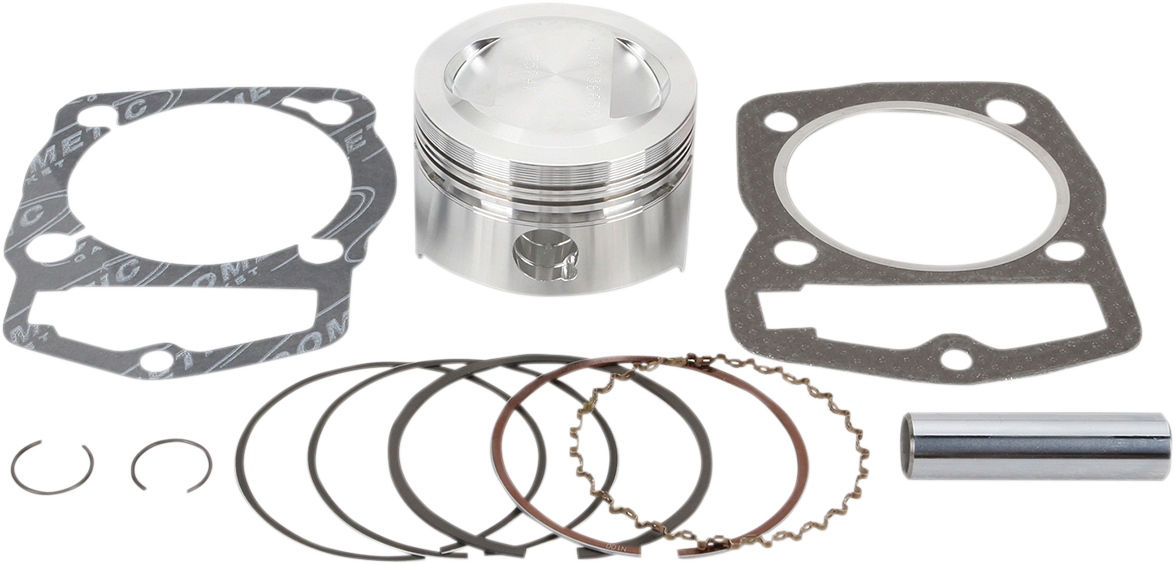

- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Cylinder sleeves must be purchased separately.
- Correct replacement ring style is stamped on the dome of piston. Example: "C" for "XC", "G" for "XG" and "H" for "XH".
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2004-2017 | Honda | CRF250X |
| 2004-2007 | Honda | CRF250R |
