| Specification | Value |
|---|---|
| Compression Ratio | 10.25:1 |
| Product Name | Rebuild Kit |
| Skirt Coating | Non-Coated |
| Units | Kit |
| Engine Type | 4-Stroke |
| Piston Material | 2618 Aluminum Alloy |
| Riding Style | ATV / Off-Road |
| Bore Size | 81.00 mm |
| Displacement | 350.4 cc |
| Model | Forged Series |
| Stroke Length | 68.00 mm |
| Type | Top End |
| Piston Diameter | 80.95 mm |

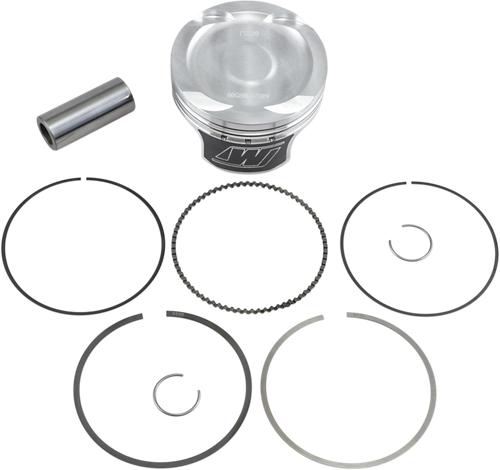

- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 1985-1986 | Honda | ATC350X |
| 1986-1987 | Honda | TRX350 |
| 1987-1989 | Honda | TRX350D |
