| Specification | Value |
|---|---|
| Skirt Coating | Non-Coated |
| Engine Type | 4-Stroke |
| Piston Material | 2618 Aluminum Alloy |
| Compression Ratio | 10.2:1 |
| Product Name | Rebuild Kit |
| Model | Forged Series |
| Piston Diameter | 92.45 mm |
| Displacement | 499 cc |
| Units | Kit |
| Bore Size | 92.50 mm |
| Riding Style | ATV |
| Type | Top End |
| Stroke Length | 75.00 mm |

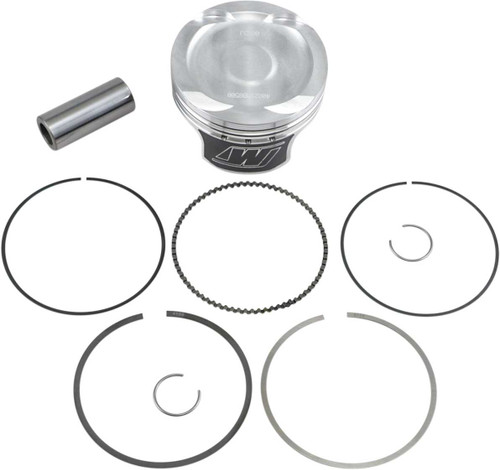

- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
FITMENTS
| Year | Make | Model |
|---|---|---|
| 2008-2012 | Polaris | Scrambler 500 4x4 |
| 2001, 2002, 2003, 2004, 2005, 2006, 2008 | Polaris | Sportsman 500 HO |
| 2004 | Polaris | ATP 500 H.O. 4x4 |
| 1999-2002 | Polaris | Magnum 500 4x4 |
| 1996-2000 | Polaris | Sportsman 500 4x4 |
| 2005 | Polaris | ATP 500 |
| 1997 | Polaris | Xplorer 500 4x4 |
